LK 900

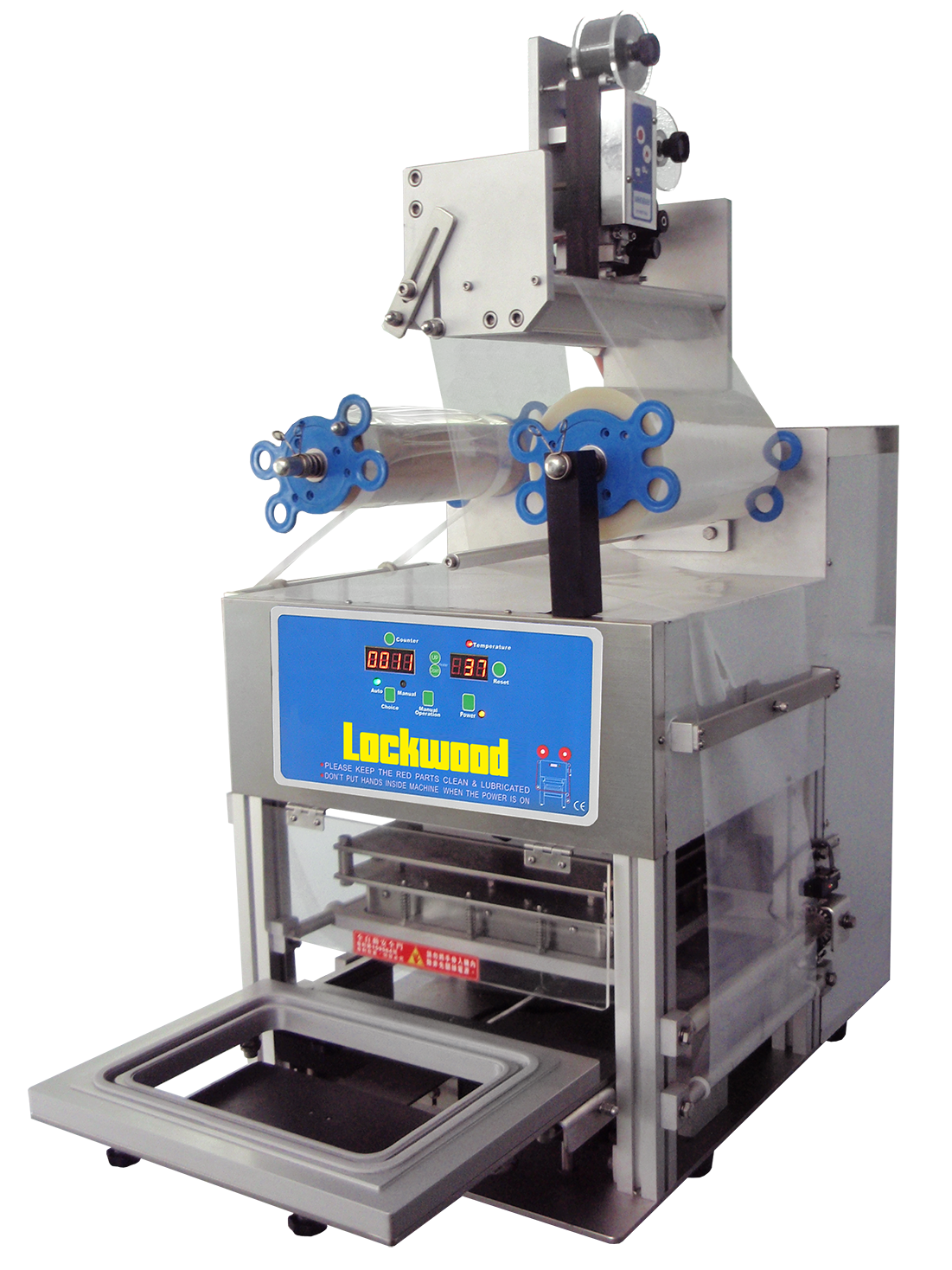

LK 900Lockwood’s LK-900 tabletop sealing machine models are suitable for plain or printed films on a reel. Ideally suited for small to medium batch operations, new product development, testing and market samples.

This superior quality machine is suitable for small and medium food processing factories. Suitable for any sealable cups and trays such as PP, PE, PET, PVC, Card Board or Foil Trays as well as Cosmetics and Pharmaceutical products.

MAIN FEATURES

  • Up to about 12 cycles per minute
  • Stainless steel frame construction and components are standard
  • Requires pneumatic compressed air supply
  • 240V single phase, 50 hz electric supply and clean dry compressed air at 80psi
  • Quick Tooling changes
  • Safety Features – gearless construction and safety front panel
  • Manual operation or Tray Photo Sensor for auto operation
  • Plain film, Auto running via  Encoder or Timer or Printed film via eye mark sensor detection
  • Film Border from 2mm (standard is 4mm) (Pull Tab Option can also be requested)

OPTIONAL EXTRAS:
If fitting optional extras, the machine will be manufactured to your requirements and specifications.

  • Gas Flushing (MAP with Vacuum less design)
  • Date Printer/Coder (hot ink manual)
  • Interchangeable Mould
  • Integrated Filling Machine (piston filler)
  • Inside cutting

Model

Machine Size (mm)
WXDXL

Weight kg

Capacity Pcs/hr

Max Cup Size (mm)

LK-900S1

350x500x820

60

450

220x170x120

LK-900S2

350x500x820

65

800

100x170x120

LK-900S4

350x500x820

70

1350

100x75x120

LK-900L1

480x705x820

70

420

320x250x120

LK-900L2

480x705x820

75

750

150x250x120

LK-900L4

480x705x820

80

1250

150x110x120

LK-900XL1

510x760x820

85

990

350x260x120

LK-900XL2

510x760x820

90

390

160x280x120

LK-900SL4

510x760x820

95

1150

160x120x120

LK-900XXL1

580x865x820

115

360

420x290x120

LK-900XXL2

580x865x820

120

650

195x290x120

LK-900XXL4

580x865x820

125

1050

195x130x120
