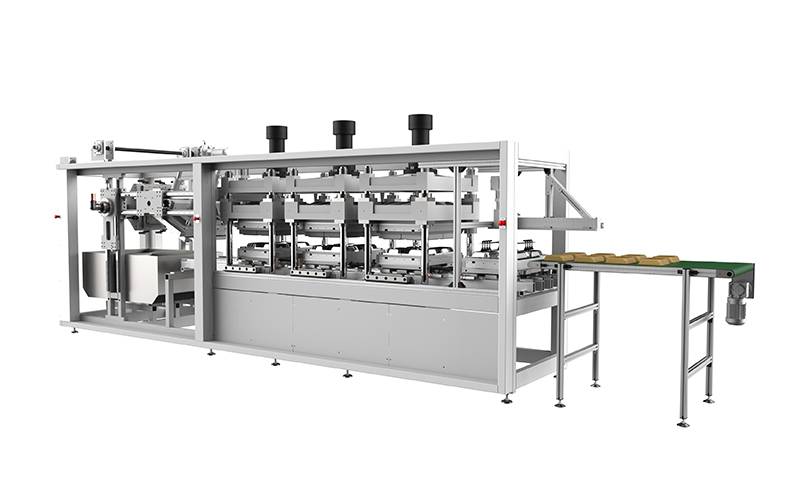

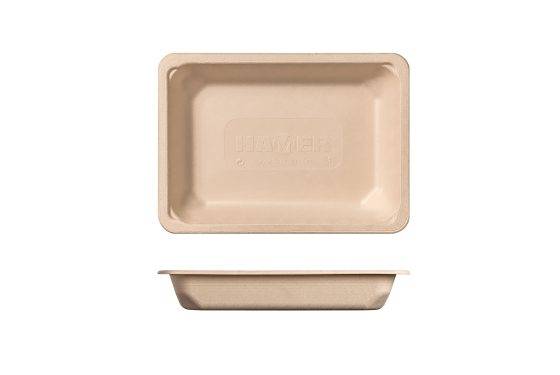

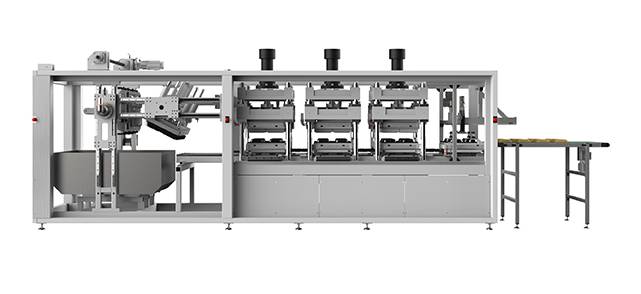

The HP 96 is a concept machine for the production of fibre trays from pulp (cellulose) with a forming station (rotational and vertical movement) and three drying press stations to manufacture ecological, biodegradable, recyclable and compostable trays.
Trays can be laminated using the LH76 to create a waterproof tray.
|
Forming area |
900 x 650 mm |
|
Forming depth (max) |
120 mm |
|
Forming table driven by |
Servomotor |
|
Transfer table driven by |
Servomotor |
|
Drying presses |
3 |
|
Closing force per press |
30 kN |
|
Dry cycle output (max) |
5 cycles / minute |
|
Product ejection stacking by |
Servodriven pick&place |
|
Power supply |
400V III |
|
Forming/Drying capacity |
1T / day |
|
Air supply |
6 bars |
|
Colour |
RAL 9002 |
