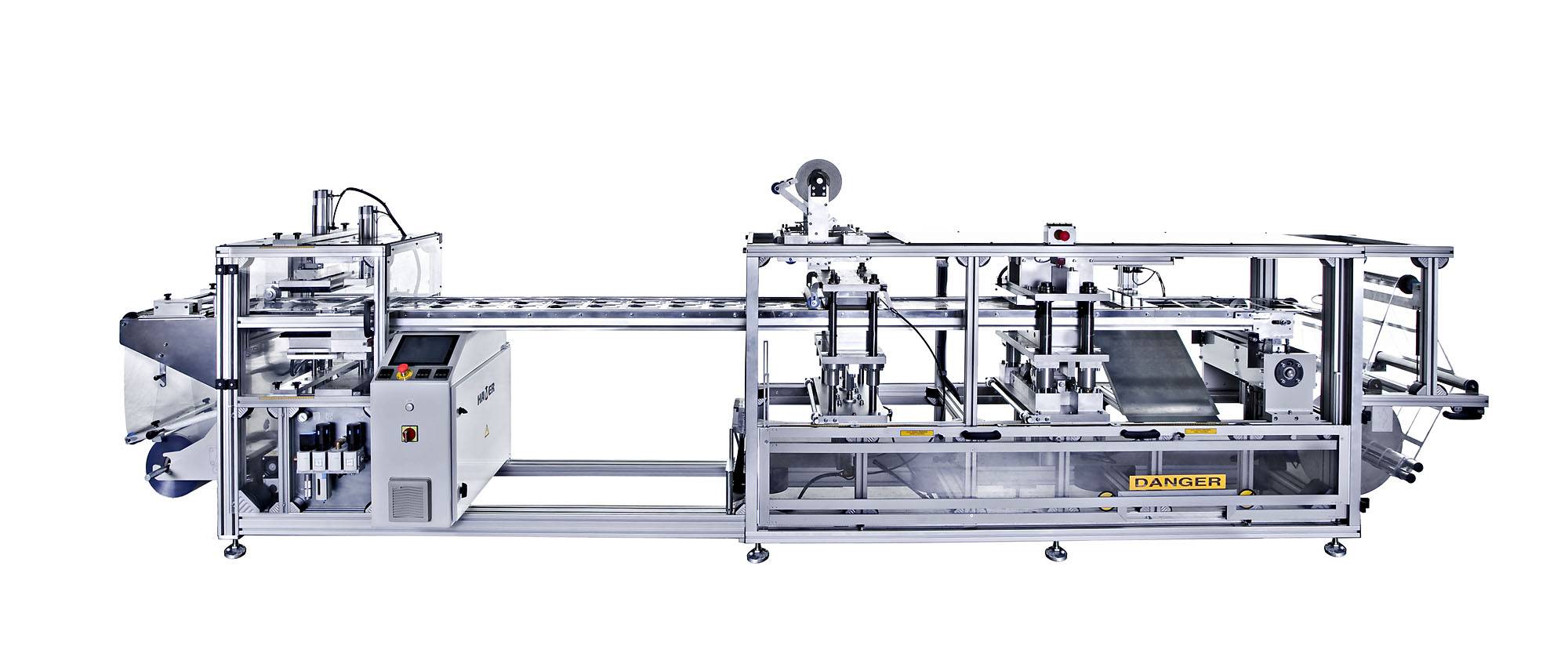

The BPC23 is an automatic line for manufacturing of blister packages either sealed against flat film or cardboard. It is ideal as an entry level in automatic form, fill and sealing lines being the right choice for anyone dealing with short and medium runs of blister packages of any kind.
Operation
All machines in the BPC series integrate all operations needed to manufacture a blister package, from forming the blister, loading of the product and sealing to trimming operations.

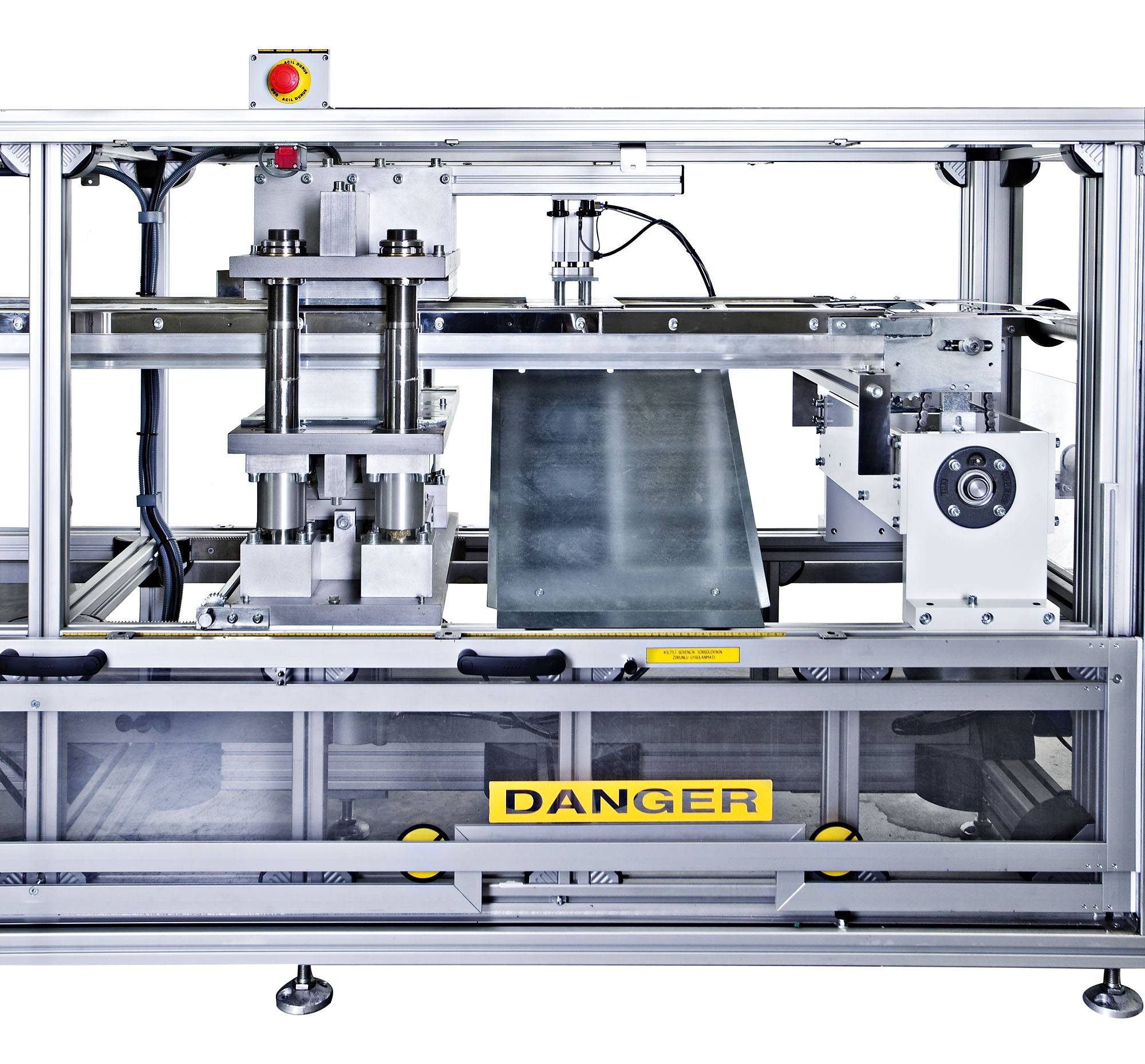

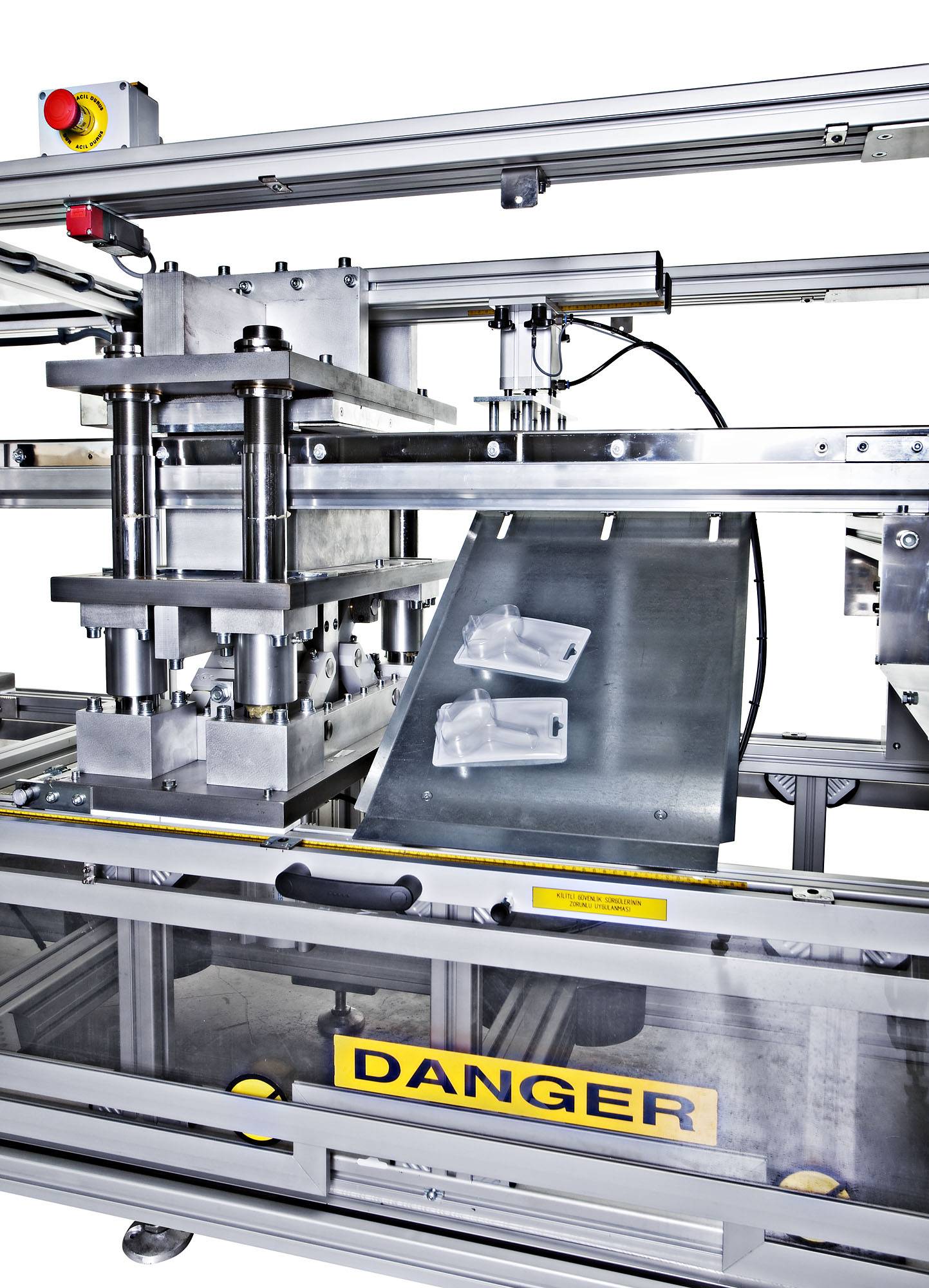

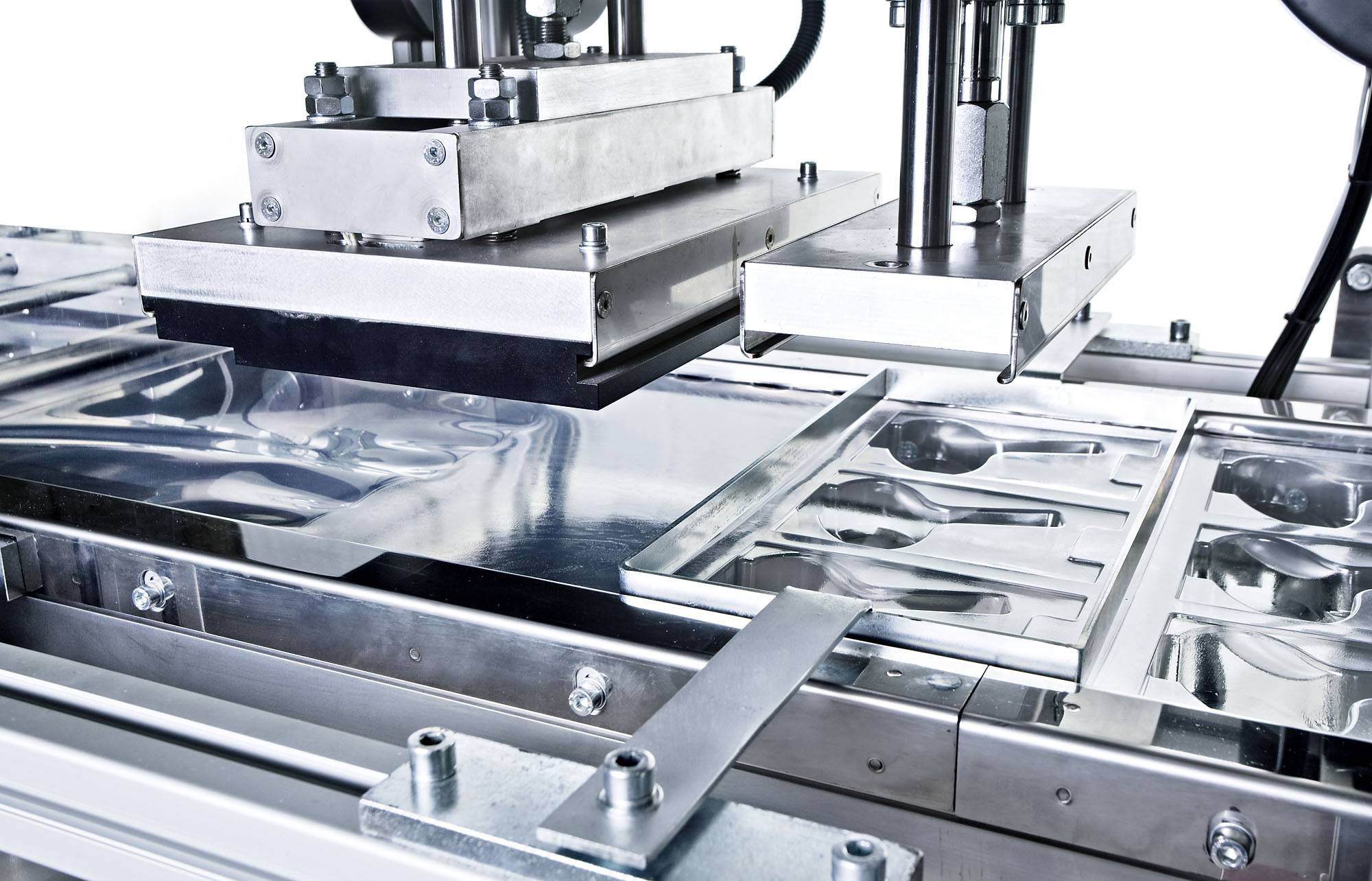

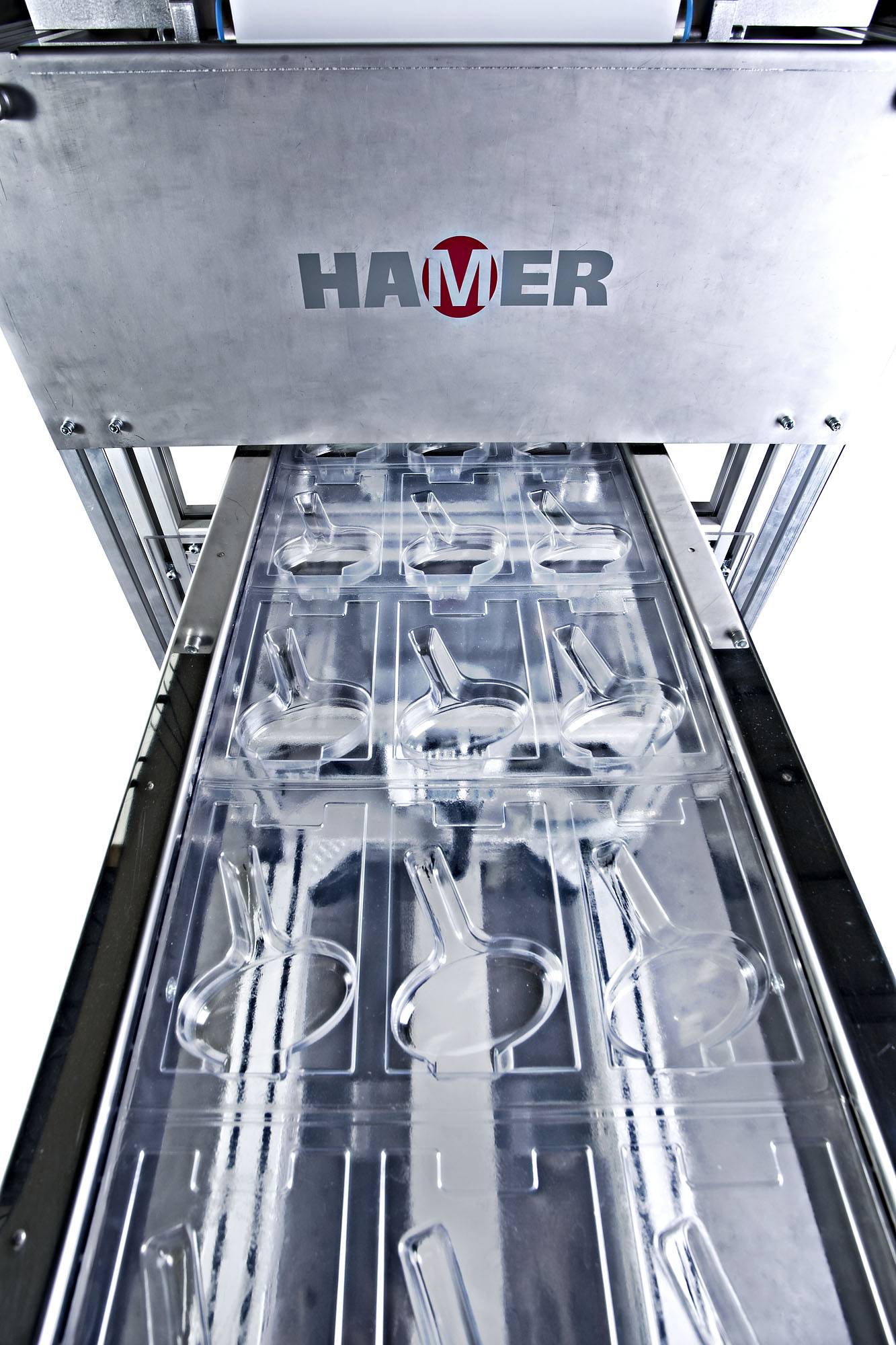

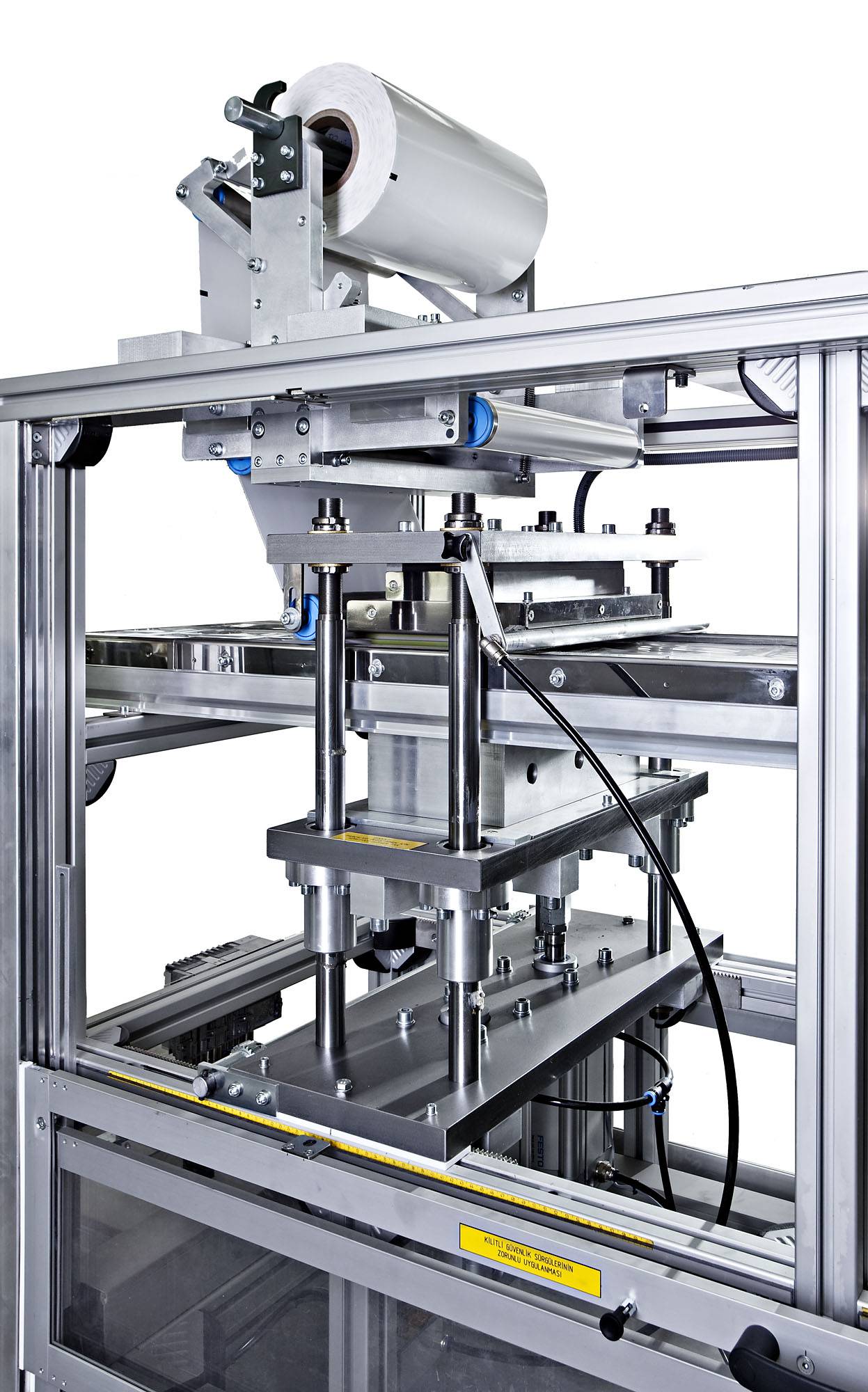

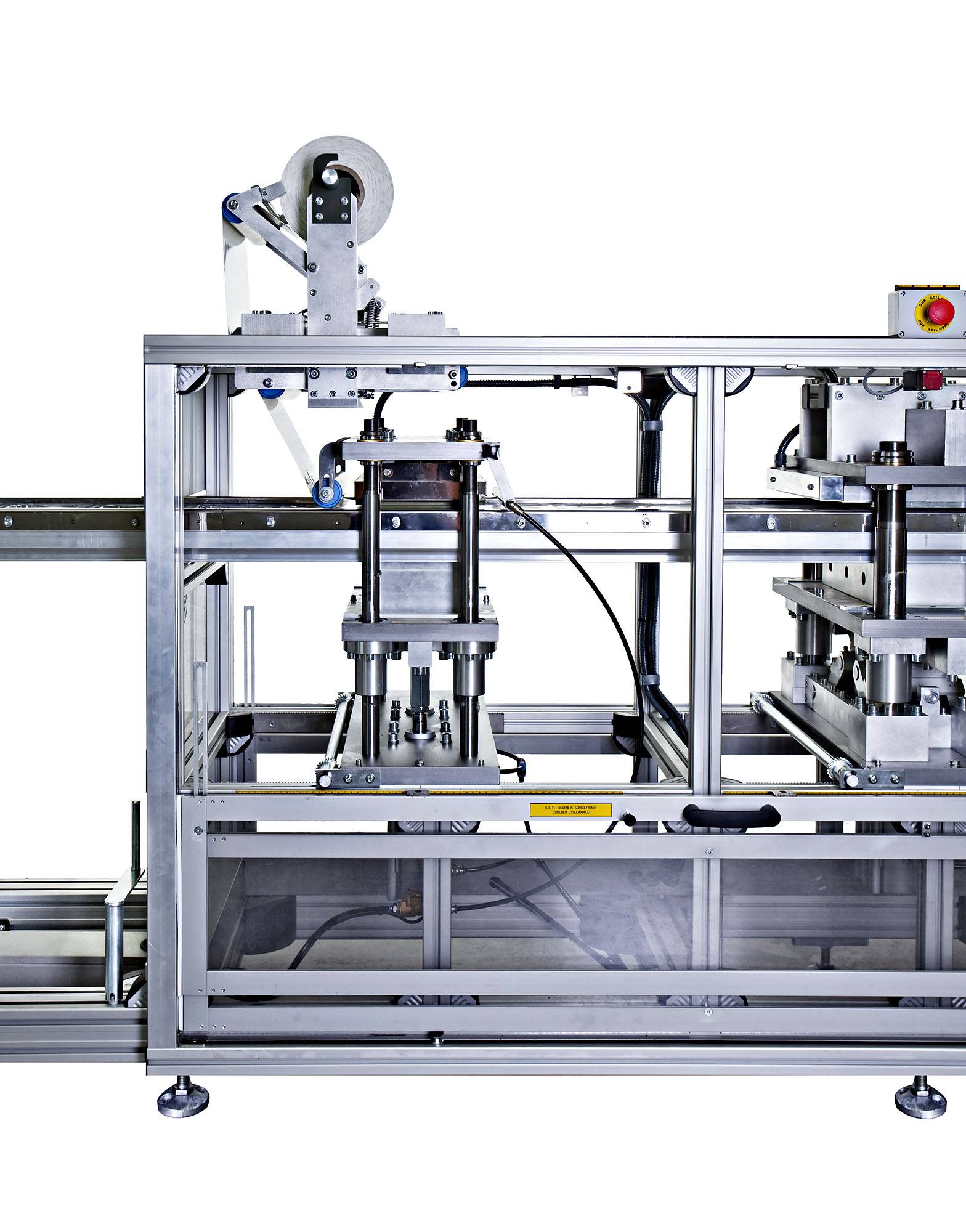

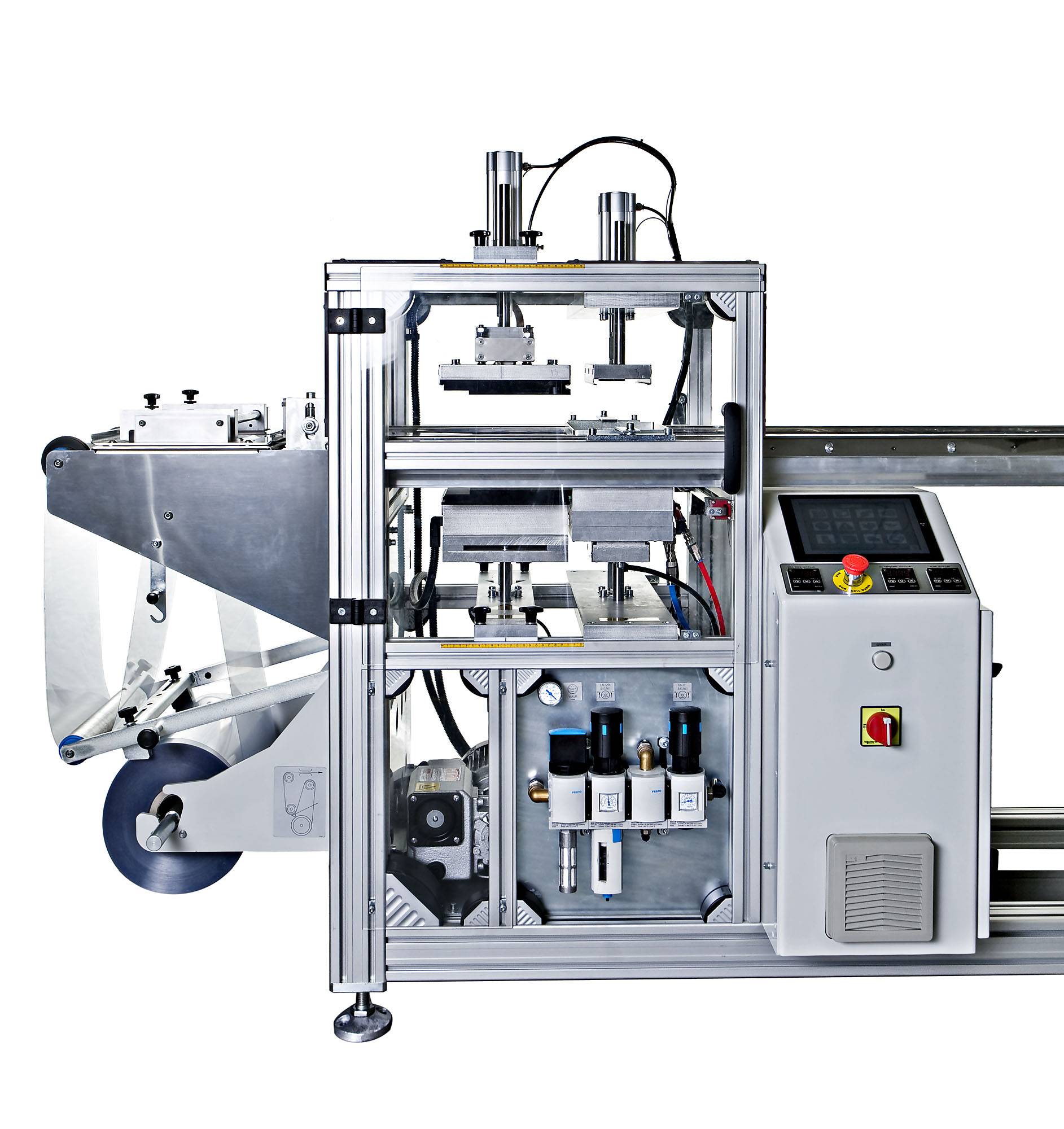

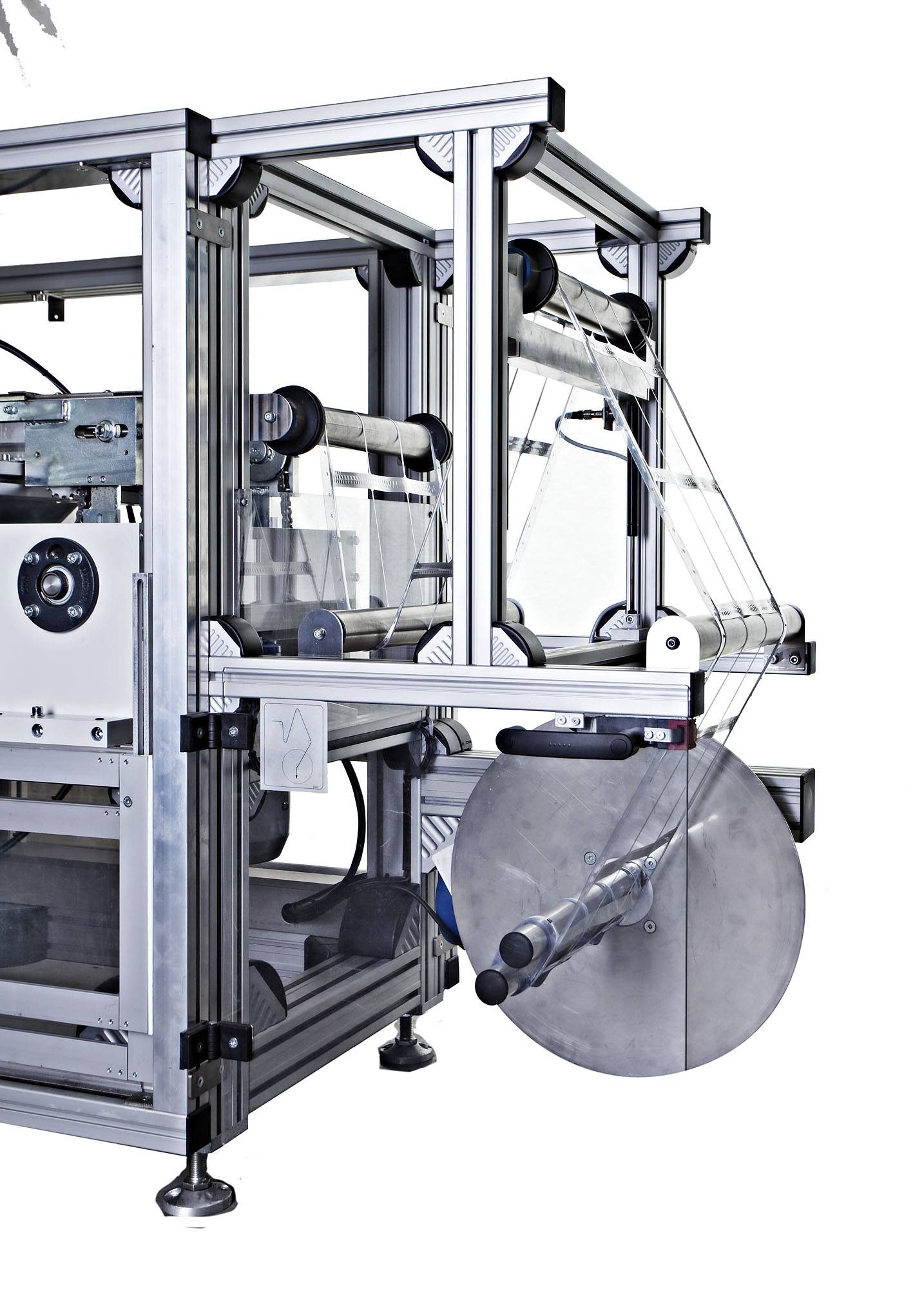

Plastic film is fed from a roll into a set of indexing chains that pierce the film and move it through a contact heater for heating to forming temperature. The heated sheet then indexes into a forming station where parts are formed by vacuum. The loading area allows the manual feeding of the products and the paper insert (if needed). Once products are already placed inside the formed blisters, the sheet moves into a sealing station where the complete working area is sealed against a plain film or a cardboard. Finally, the sheet moves into a die-press, mounted immediately after the sealing press, where individual blisters are punched out.

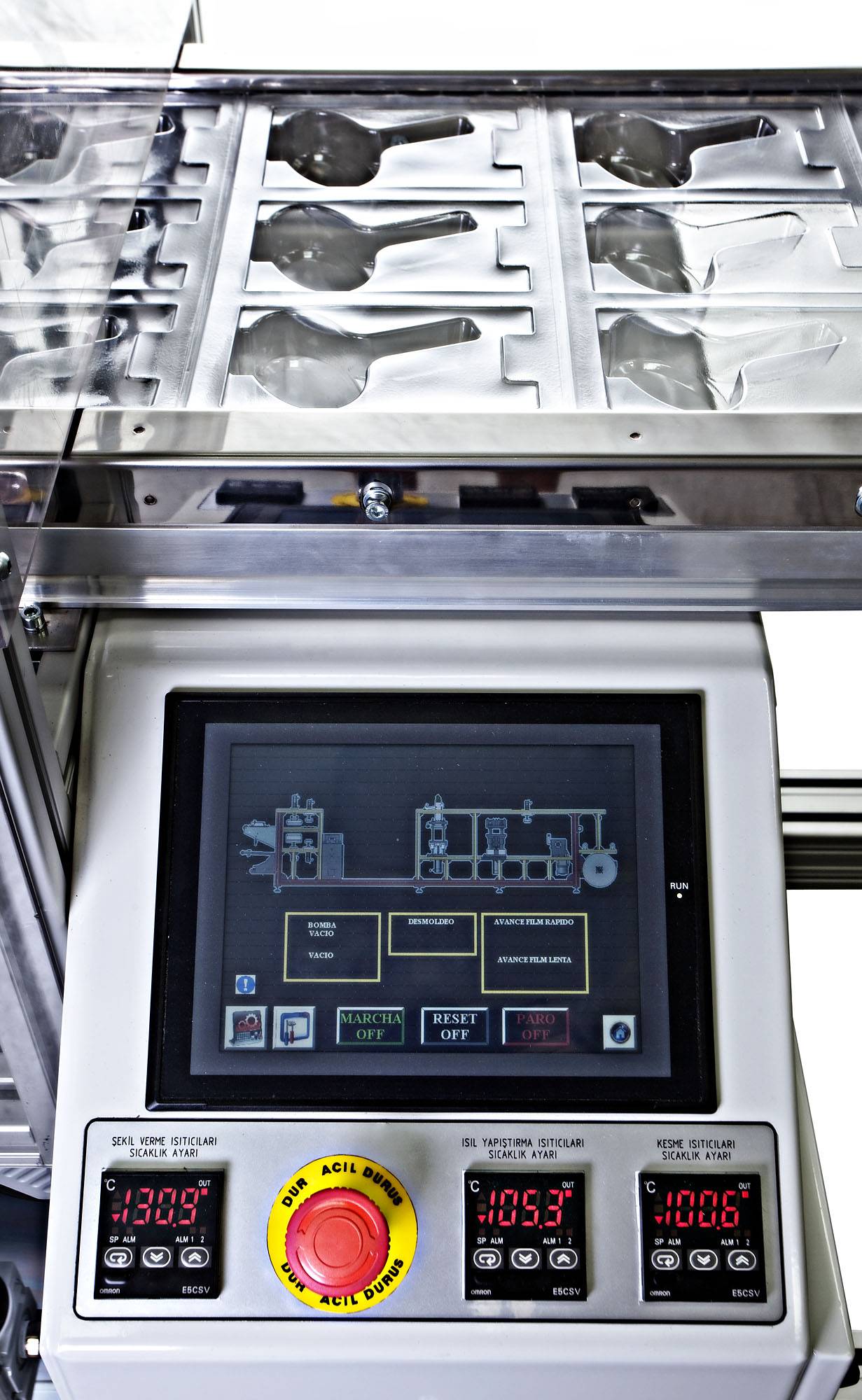

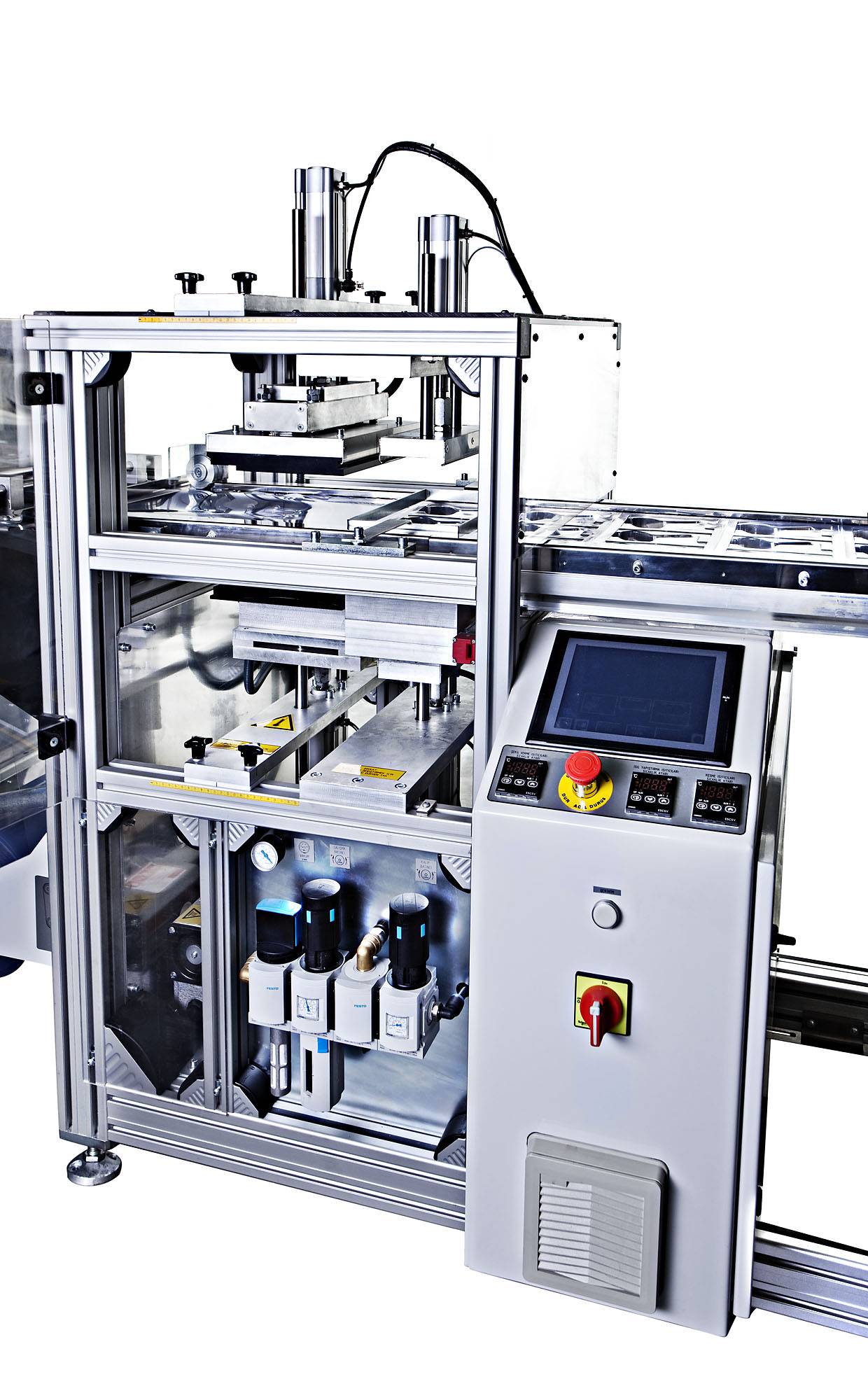

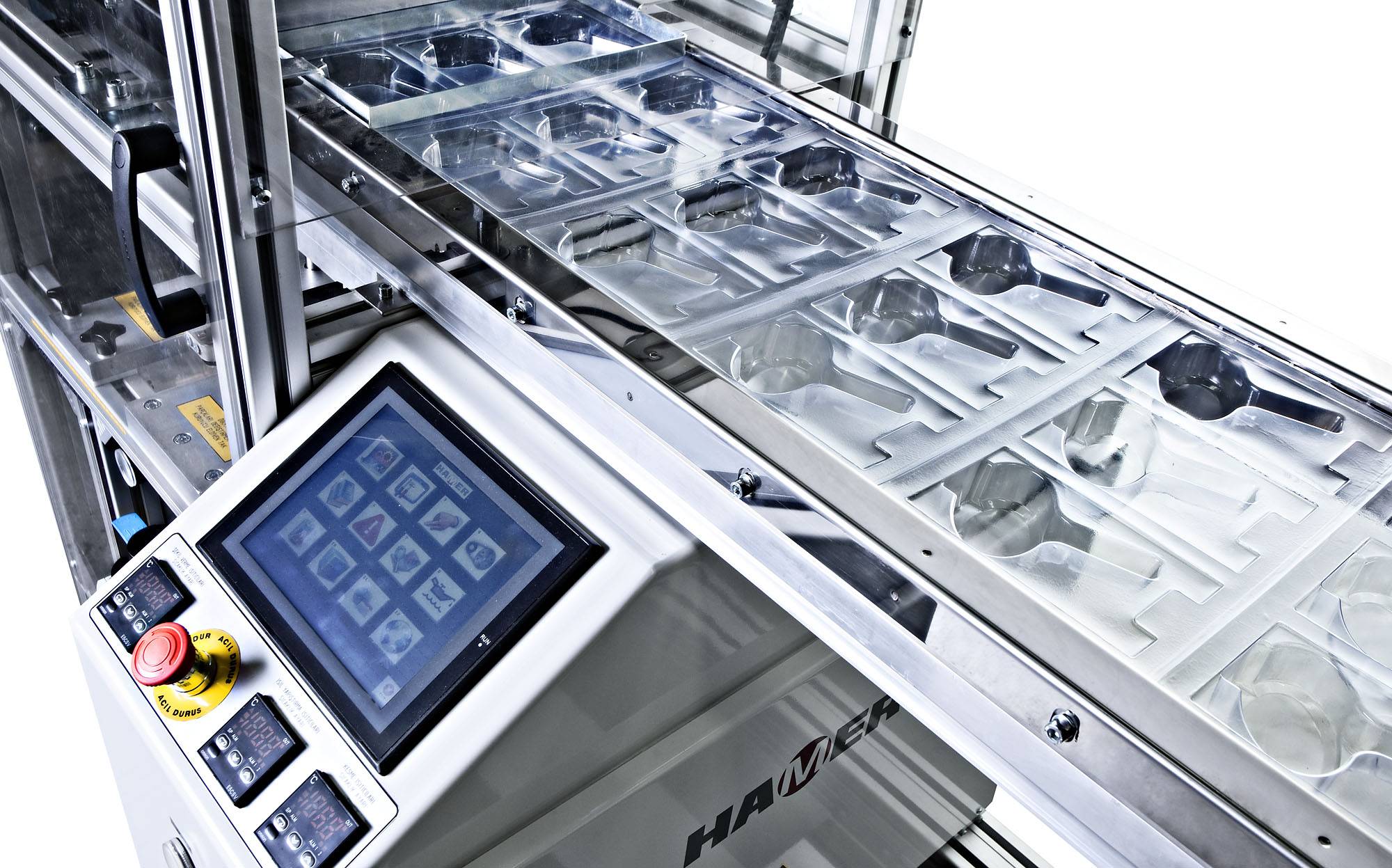

All relevant operational parameters are controlled via a touch-screen and saved inside the built-in PLC.
Features
- Sturdy construction, designed from scratch.
- Low cost operation, extremely low mechanical maintenance.
- Quick tool set change-over.
- PLC operated, touch-screen controlled.
- EU safety rules compliance.
Optional Extras
- Heating plate to heat steel-rule die cutter
- Automatic card feeder
Technical specifications
|
Forming film roll diameter (max.) |
400 mm |
|
Forming film thickness (max.) |
0,5 mm |
|
Forming film width (max.) |
350 mm |
|
Forming film width (min.) |
180 mm |
|
Forming area (max.) |
310 x 210 mm |
|
Forming area (min.) |
150 x 100 mm |
|
Forming depth below film line (max.) |
60 mm |
|
Vacuum pump flow |
21 m3/h |
|
Heating power |
4.8 kW |
|
Sealing film roll diameter (max.) |
300 mm |
|
Sealing film thickness (max.) |
0,15 mm |
|
Loading area length |
1000 mm |
|
Loading area height |
950 mm |
|
Sealing force |
950 Kg |
|
Die-cutting force |
10.000 Kg |
|
Cycle speed (dry conditions) |
12 cycles/min |
|
Total installed power |
13 kW |
|
Total air consumption (at 12 cycles) |
34 m3/h |
|
Power supply |
400V T N, 50 Hz |
Dimensions
|
Height |
1.500 mm |
|
Width |
880 mm |
|
Length |
5.500 mm |
|
Estimated Weight |
1.400 Kg |
