FV35R Thermoformer

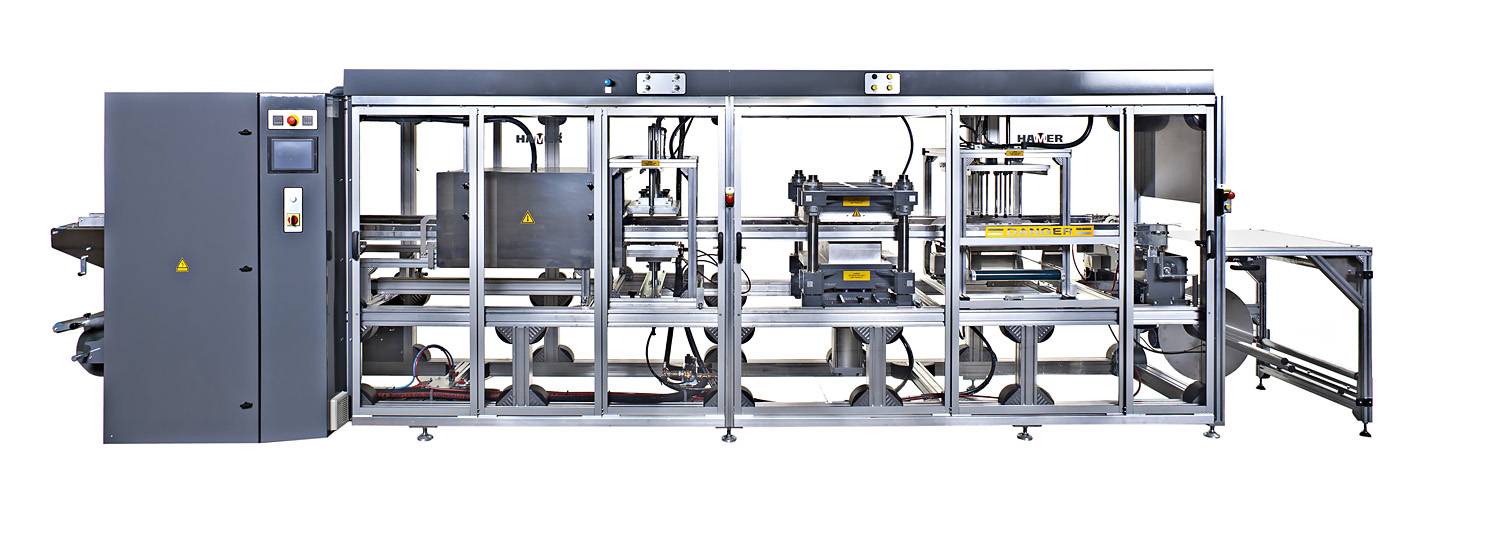

The FV35R is an automatic vacuum forming machine with separate stations for forming, trimming and stacking. It is suitable for medium outputs of small parts.

The FV35R is a pneumatic motioned machine specially designed for simplicity and flexibility. Designed to form blisters below the film line but with an option to modify the trimming press so that blisters can be cut above the film line with a downward stacking operation. The formed blisters are stacked in piles on a conveyor belt, below the stacking device. This stacking system eliminates the need for complicated vertical stacking tools and can therefore be shared between different formats.

FV35R

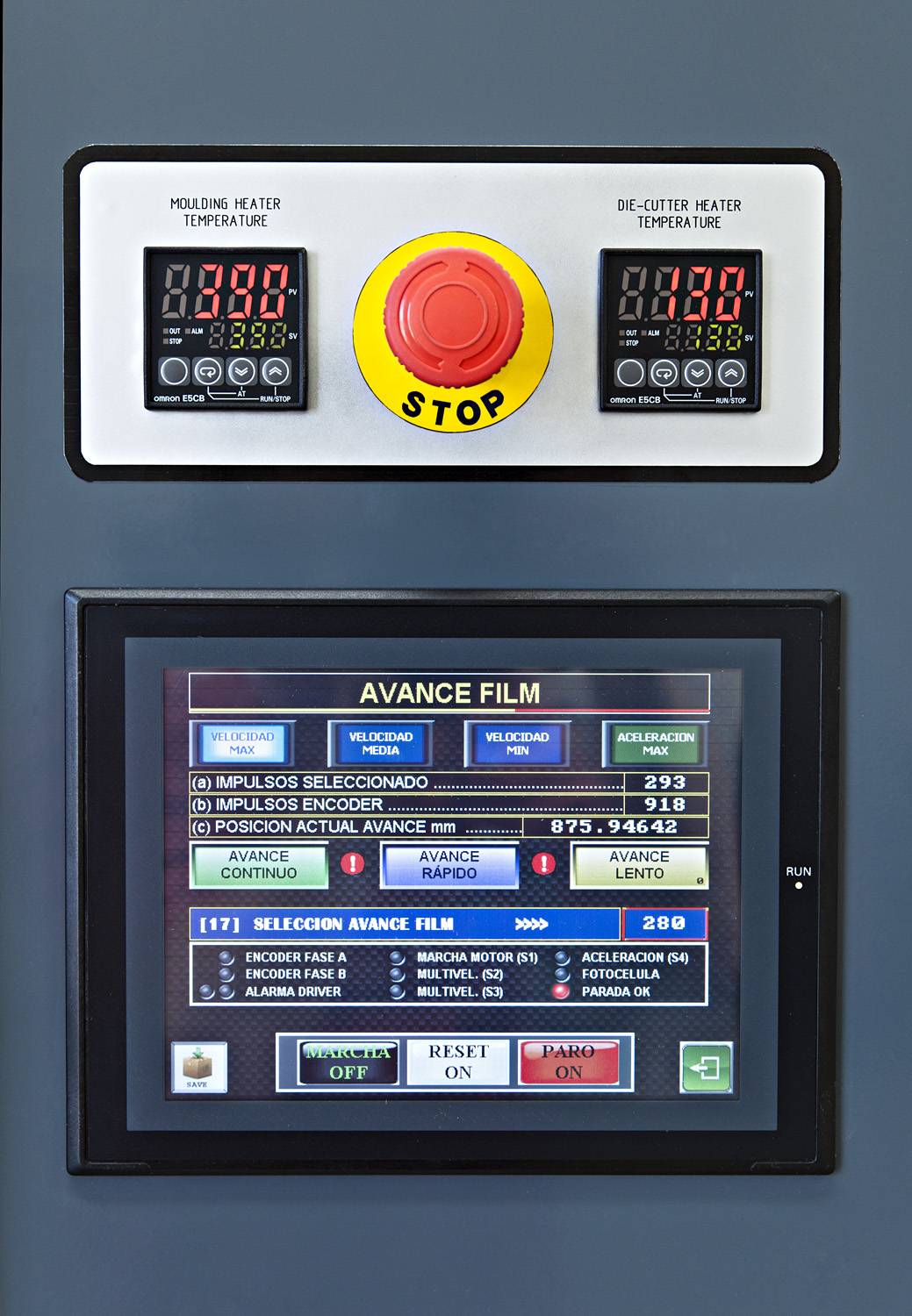

Operation

With the continuous roll fed material, securely punched along the side edges into a chain conveyor, moving through the heater. The hot sheet continues into the forming station where forming takes place by forcing a vacuum heated plastic sheet against a mould to produce the desired shape blister.

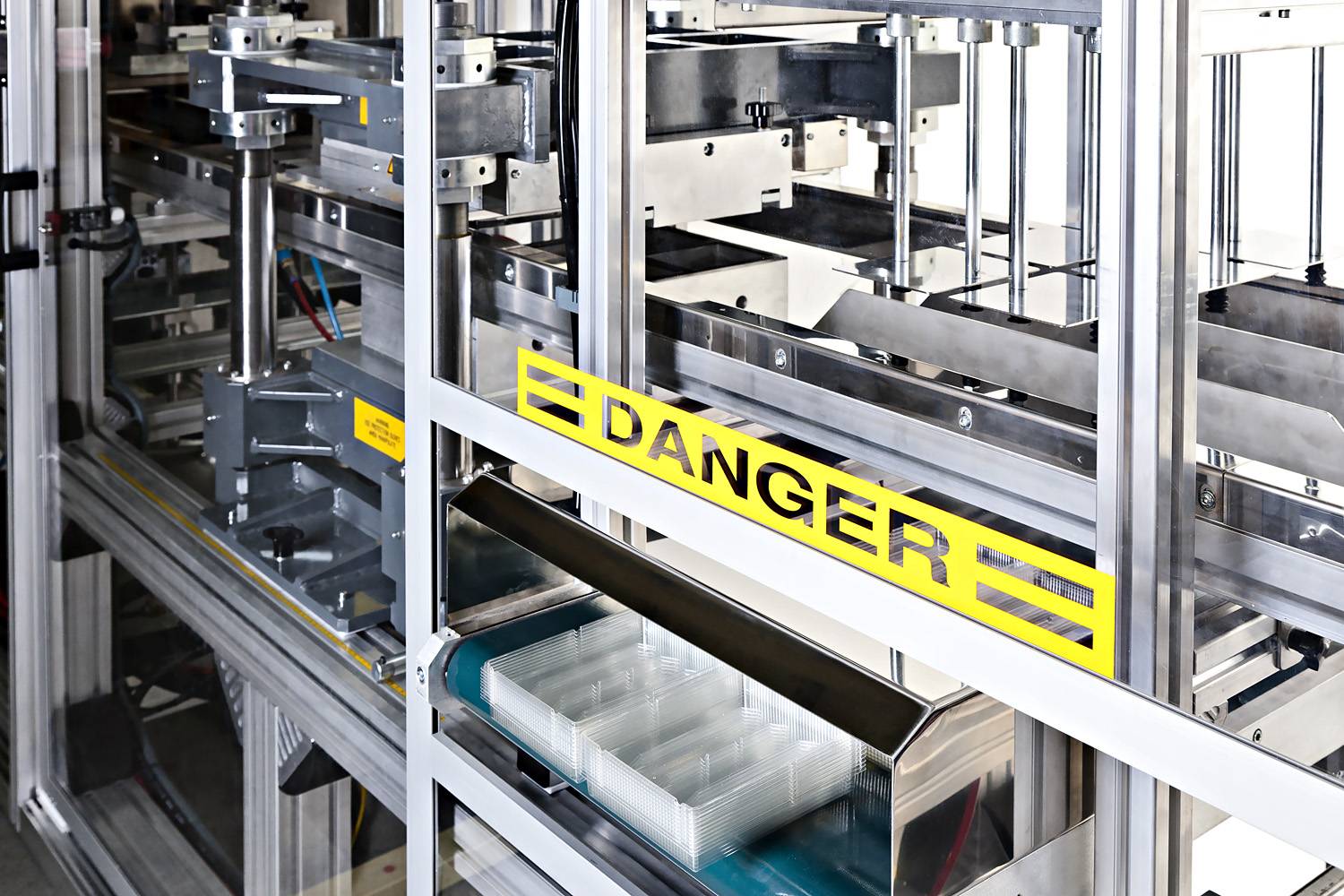

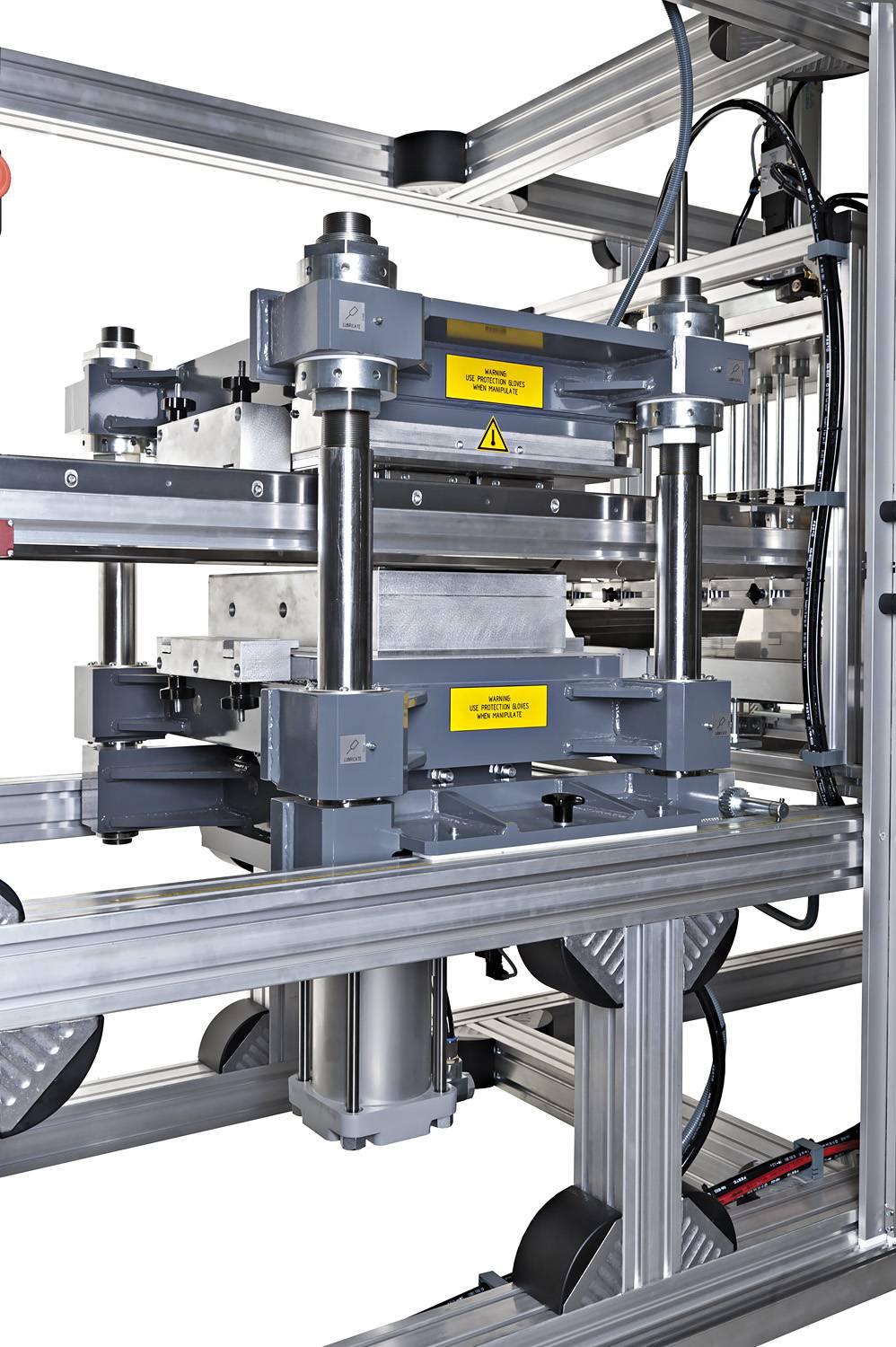

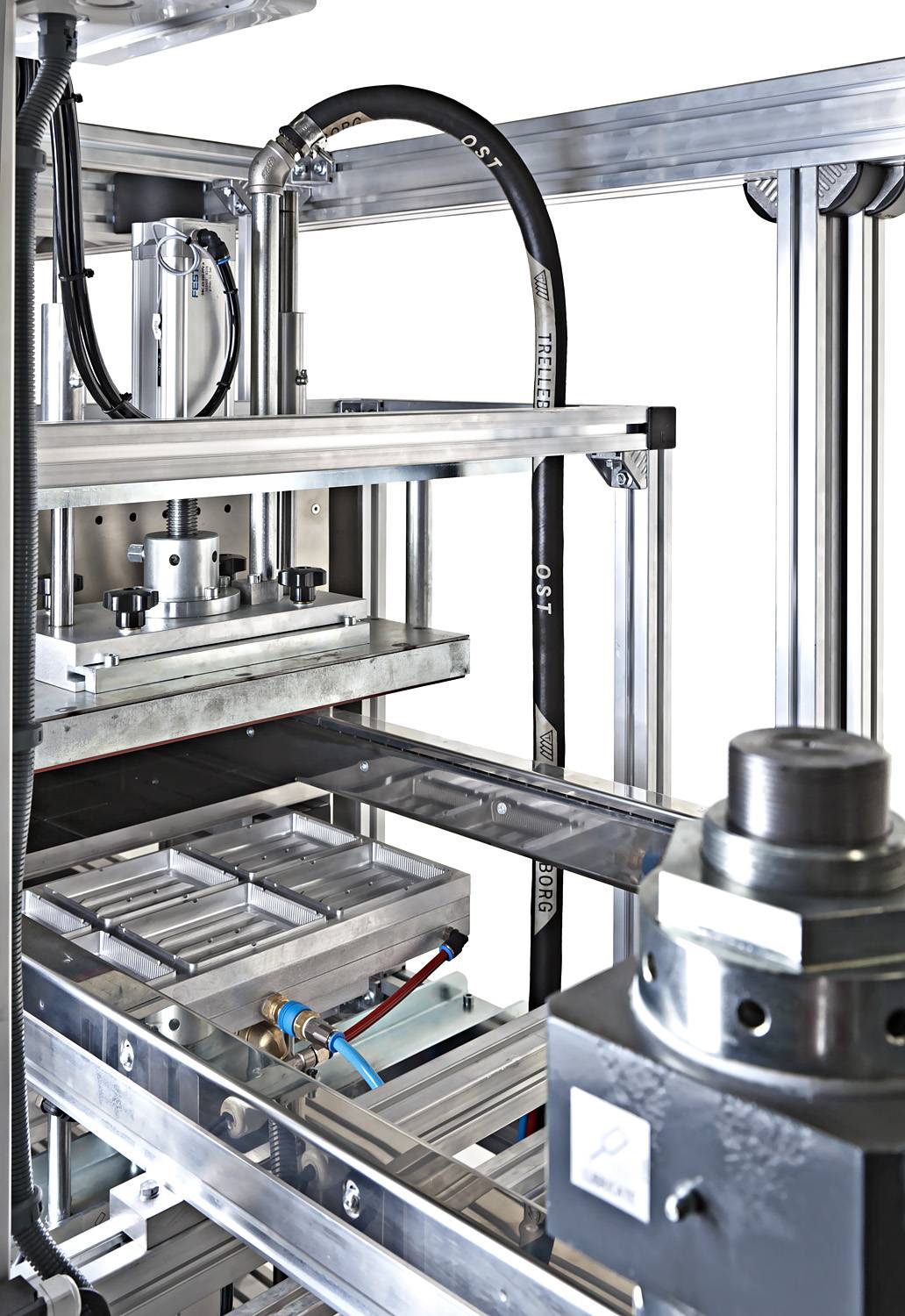

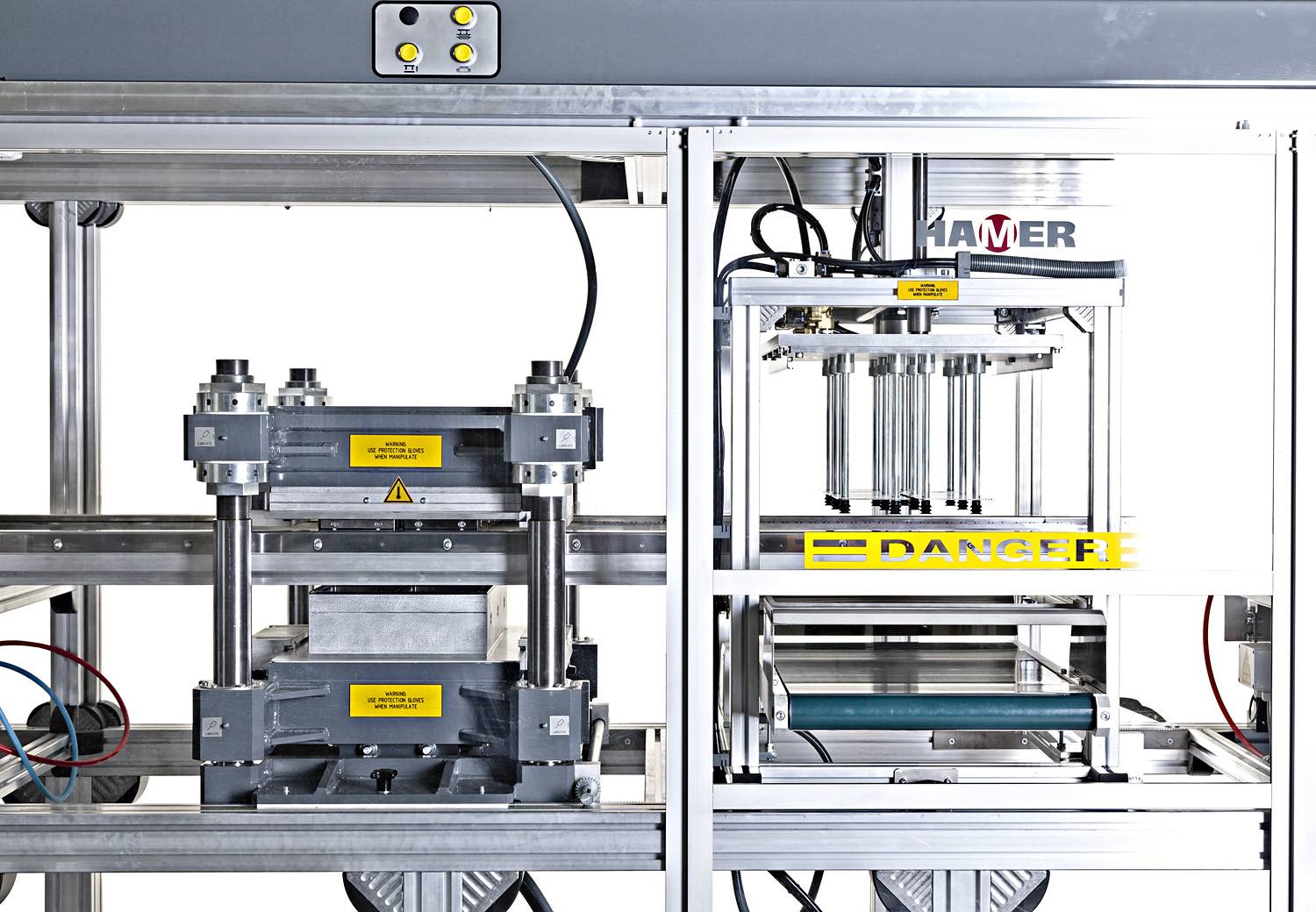

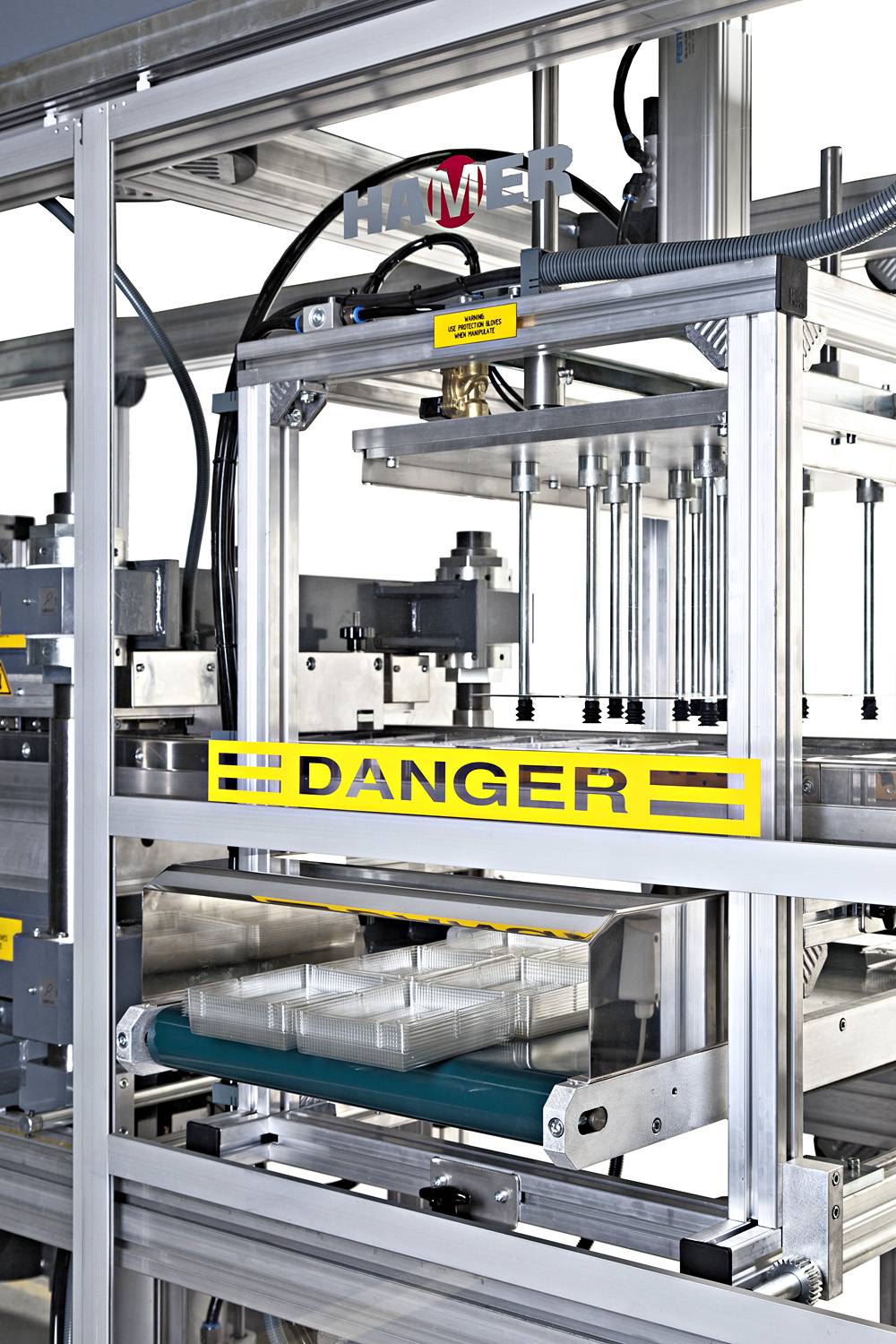

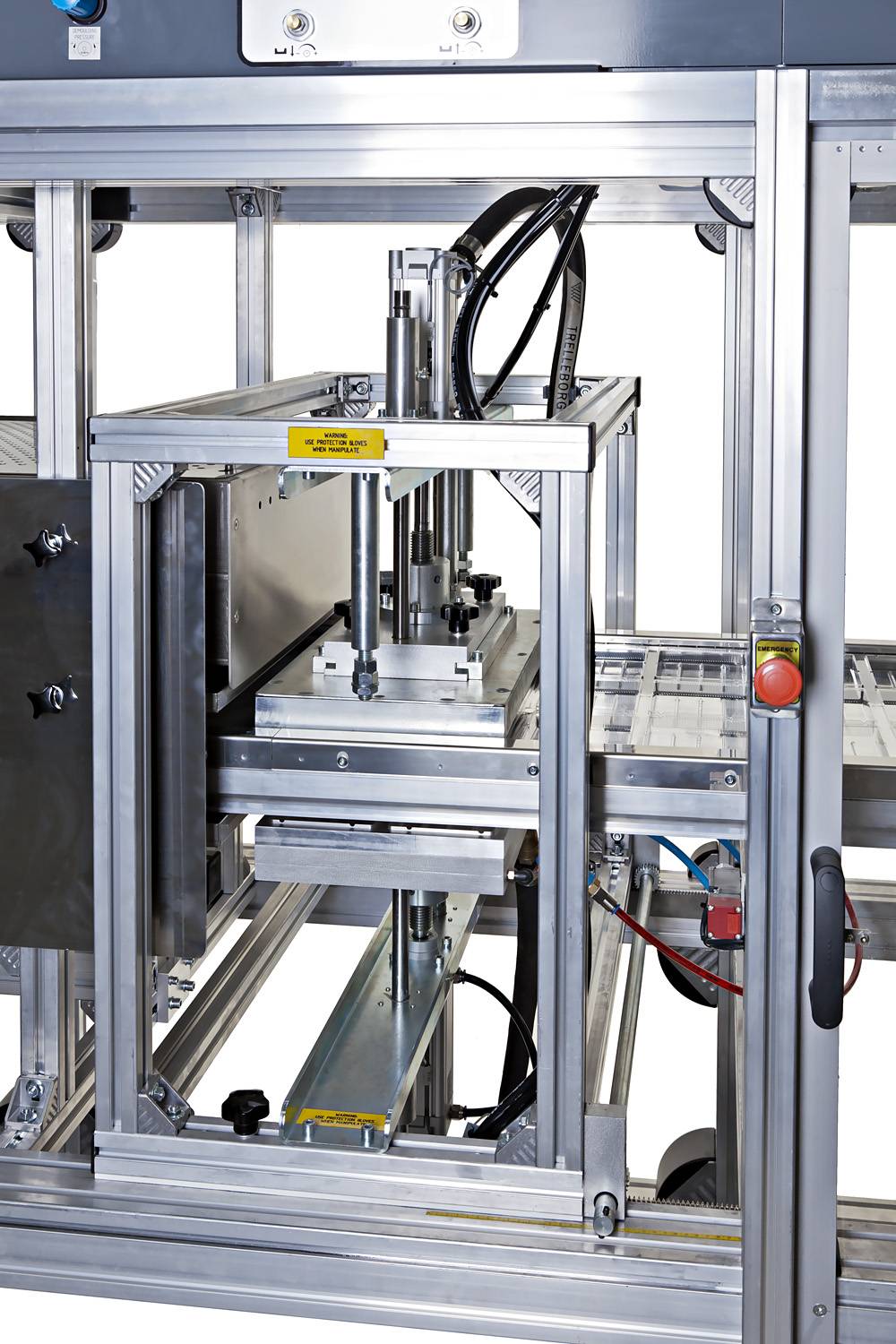

Once formed, it moves into the trimming station where the formings/blisters are punched out by steel rule die. Finally, parts move into the stacking station where they are separated from the roll and placed onto a conveyor belt. When stacking cycle is complete, the conveyor moves forward delivering the blisters to the operator.

Technical specifications



FV35R



Forming film roll diameter (max.)

500

Mm

Forming film thickness (max.)

0.5

Mm

Forming film width (max.)

570

Mm

Forming film width (min.)

330

Mm

Forming area (max.)

500x350

Mm

Forming area (min.)

300x200

Mm

Forming depth below film line (max.)

80

Mm

Forming height above film line (max.)

-



Vacuum pump flow

40

m3/h

Heating power

17,2

kW

Forming tables driven by

Pneumatic



Trimming press tables driven by

Pneumatic/toggles



Trimming power

20

Tn.

Dry cycle output

22

Cycles/min.

Stacker driven by

Pneumatic



Total installed power

24

kW

Air consumption (at dry/cycle)

110

m3/h

Power supply

400

V N T, 50 Hz
