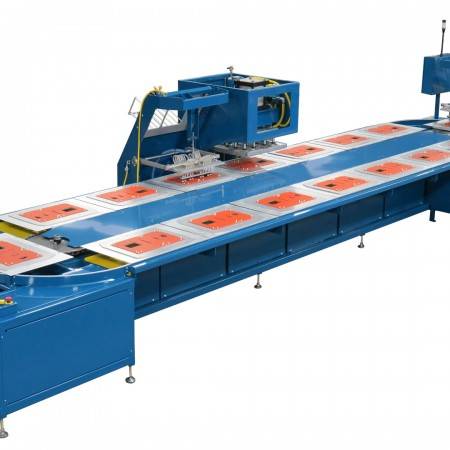

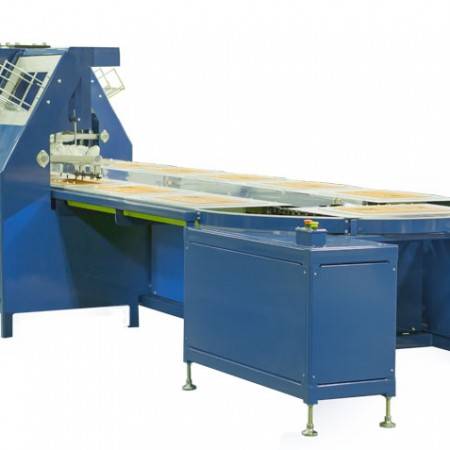

Algus U16 Carousel

The U16 offers maximum flexibility. It’s unique modular design allows for multiple machine configurations, alterations and expansions based upon your unique needs and growth.

With it’s quick set-up which maximizes production time, the U16 is the machine to take your company’s production to the next level:

 -       Blisters and cards feed automatically into nesting trays. Feed stations are reloadable
         during machine operation
-       Modular “plug and run” feeders
-       Servo controlled drive
-       Safety interlocked guards
-       Quick accurate change-over
-       Casters for portability
-       36” wide product load stations
-       Full PLC control with 8” touch panel
-       Digital temperature control
-       Digital seal contact timer
-       Adjustable sealing pressure
-       Emergency stop switches
-       5 – 20 cycles per minute
-       Operator loads product into blister
-       Suction cups lift the packages from the nesting trays and place them face up on the
        eject slide for movement to take-off conveyor or table
-       Card is automatically heat sealed to blister on flange only
-       Use for face seal blister packs, trapped blister (double card)
-       Large seal area ideal for club pack

Accessories/Optional Features

• Lower seal press anvil
• Teflon® coating for seal die
• Anodized tooling components
• Machine status light tower
– Time, Temperature and Pressure monitor
– Alarm systems
 PLC control with data acquisition
 Heat seal tooling
– 16 product nesting trays

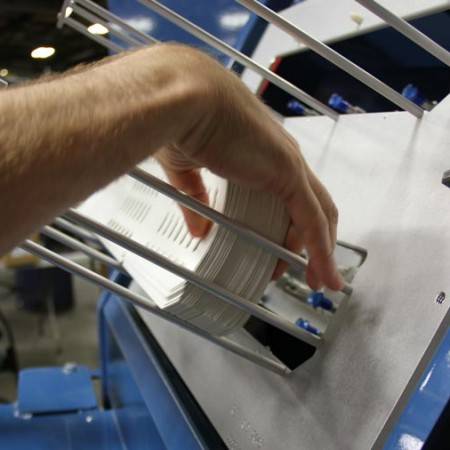

– Blister and card magazine
– One blister plug rack
– One heater plate (Seal Die)
 Heat plate change-over assist
 Eject Systems
– Transfer eject
– Hand-off eject
– Pick and place
Plastic welding systems
– Radio-Frequency sealing (RF)
– Ultrasonic sealing
– Hot-Cold sealing
Modular Satellite Systems
– Inserts or double cards
– Foldover card
– Clamshell closing
– Product loading

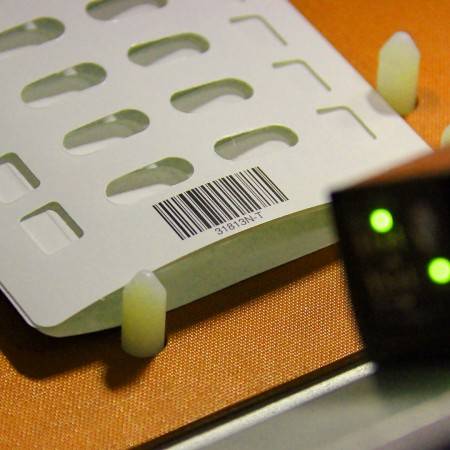

Barcode verification system with optional reject system

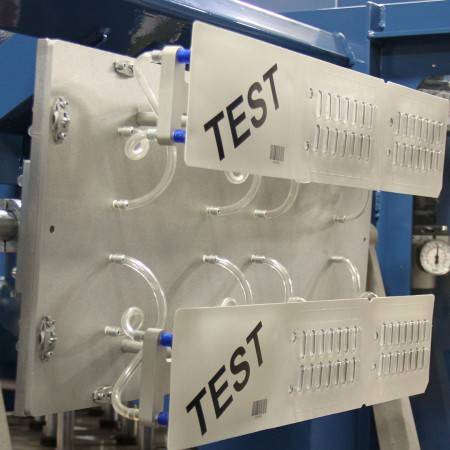

– Card, eject suction rack
Lot code printing
– Laser System
– Inkjet System
