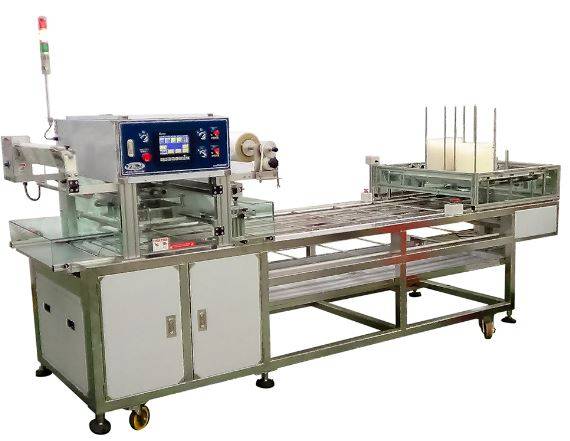

LK 55

The LK 55 is an automatic MAP Tray Heat Sealing machine suitable for all types of tray sealing with film for all types of food applications (meat, microwave, seafood, salads and fruits) to maintain the freshness, flavour and extend shelf life.

The LK 55 is available in 6 sizes with cavities of one, two, three or four depending on the machine size with the option of controlling the film feed by sensor, encoder or time, suitable for heat sealable film (both plain and printed) and foil.



Model

Machine Size wxdxl

Capacity/min

Vacuum Pump Design/Vacuumless Design

Max Tray Size

LK 55S1GF

2000 x 700 x 1450

4 cycle/min 8 cycle/min

270 x 180 x 100 mm

LK 55M1GF

2500 x 850 x 1450

4 cycle/min 8 cycle/min

400 x 300 x 100 mm

LK 55L1GF

2500 x 1050 x 1450

4 cycle/min 8 cycle/min

550 x 230 x 100 mm

LK 55S1VGF

2000 x 700 x 1450

4 cycle/min 8 cycle/min

270 x 180 x 100 mm

LK 55M1VGF

2500 x 850 x 1450

4 cycle/min 8 cycle/min

400 x 230 x 100 mm

LK 55L1VGF

2500 x 1050 x 1450

4 cycle/min 8 cycle/min

550 x 230 x 100 mm
