HC63 - 12 station Carousel Heat Sealing Machine

The Hamer HC63 is a 12 station Carousel type Heat Sealing Machine suitable for
the automatic packing of face sealed (blister to a single backing card) or trapped
blisters (sealed between two cards) in medium to large production.

The tooling layout at a convenient height allows operators easy access to all areas
and makes loading the feeders and product very simple.  The QCT (quick change
tooling) ensures maximum production time minimizing down time and set up
of new jobs.

The machine can be linked directly to one of our thermoformer's where blisters are
formed and fed directly into the HC63 machine for a complete automated line.

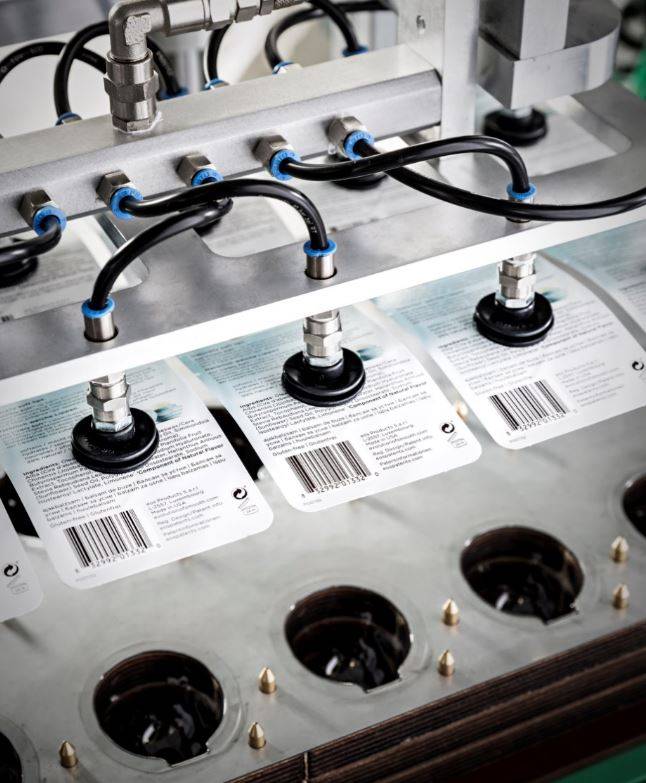

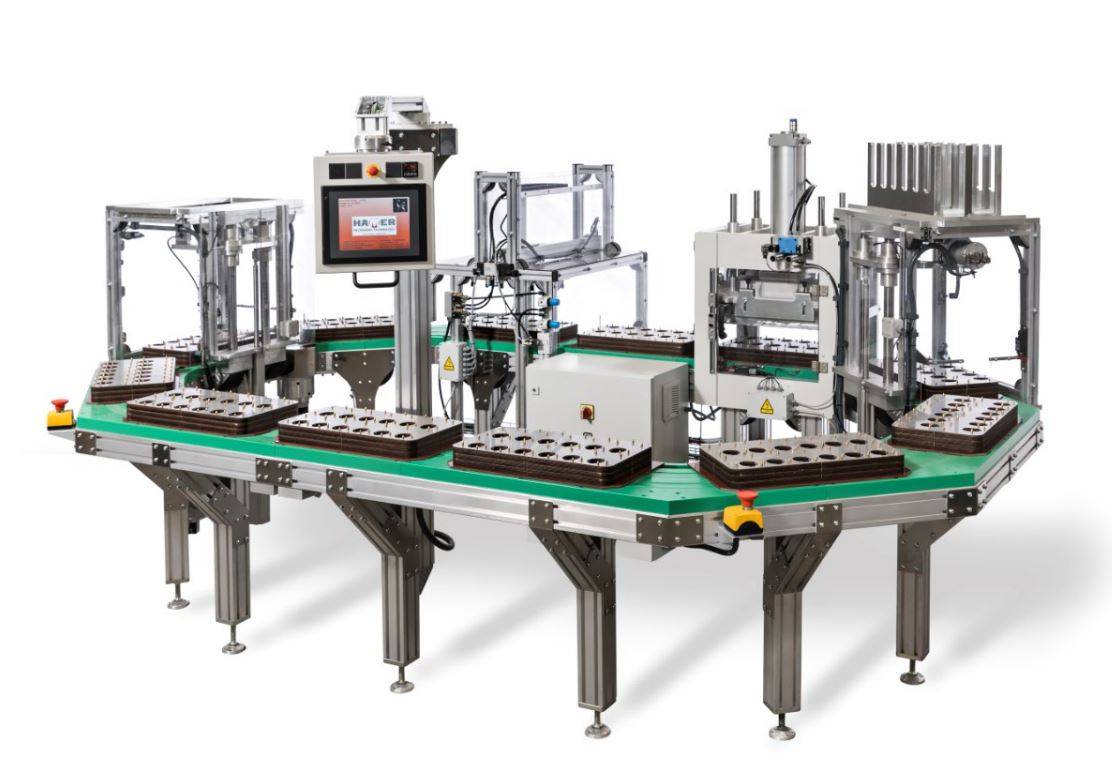

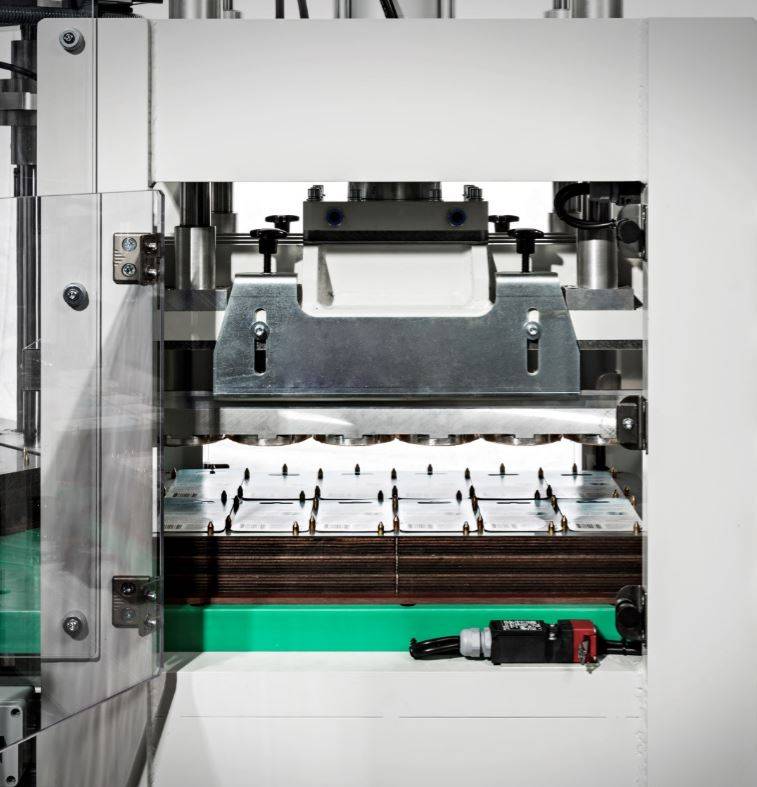

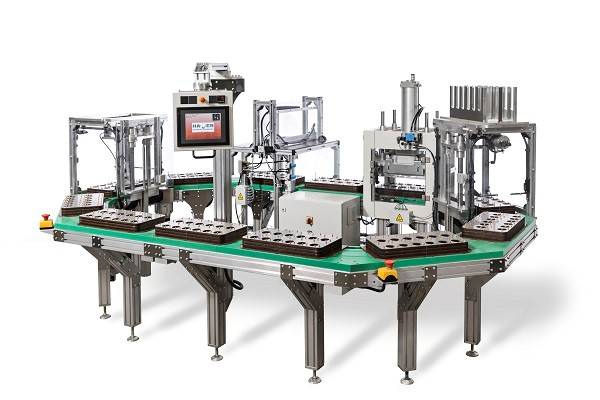

HC63 Carousel

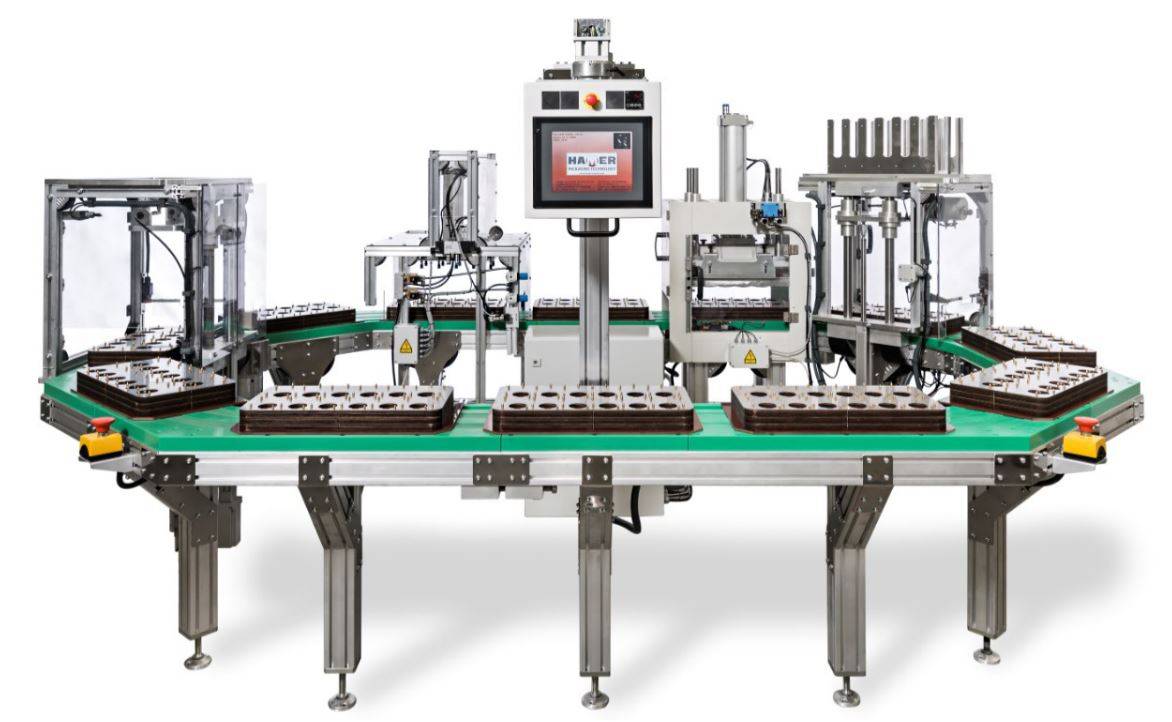

HC63 – 12 station with Quick Change Tooling and colour touch screen control


Machine is supplied standard with automatic feeders for the pre-made blisters and heat
seal cards plus heat seal station and pick and place eject of sealed package with a PLC
colour touch screen.

The standard 12 station machine has the capacity to upgrade to 4 additional auto
feeding stations for; the back card of a trapped blister, multiple product loading,
pre-made pill strips or sachets or card/paper printed inserts etc.


Main Specifications


Standard Specification – Face - Heat Sealed Blister
1x Blister loading station
6x Open station for manual product loading
1x Back card loading station
1x Heat sealing station
1x Pick and place eject station


Standard Specification – Trapped - Heat Sealed Blister
1x Front card loading station
1x Blister loading station
4x Open station for manual product loading
1x Back card loading station
1x Heat sealing station
1x Pick and place eject station

Machine Options Available

Flexible and modular design to enable customisation with multipe feeders
Automatic loading station for pre-blistered pill strips
Automatic loading station for sachets
Automatic loading station for customer’s product, pick and place or robotics
Ink jet coding
Label application
Bar code reading
Vision system for product verification
Machine can be extended up to 18 stations

Face Sealed Blister     Trapped Blister

Face sealed blister                                     Trapped blister

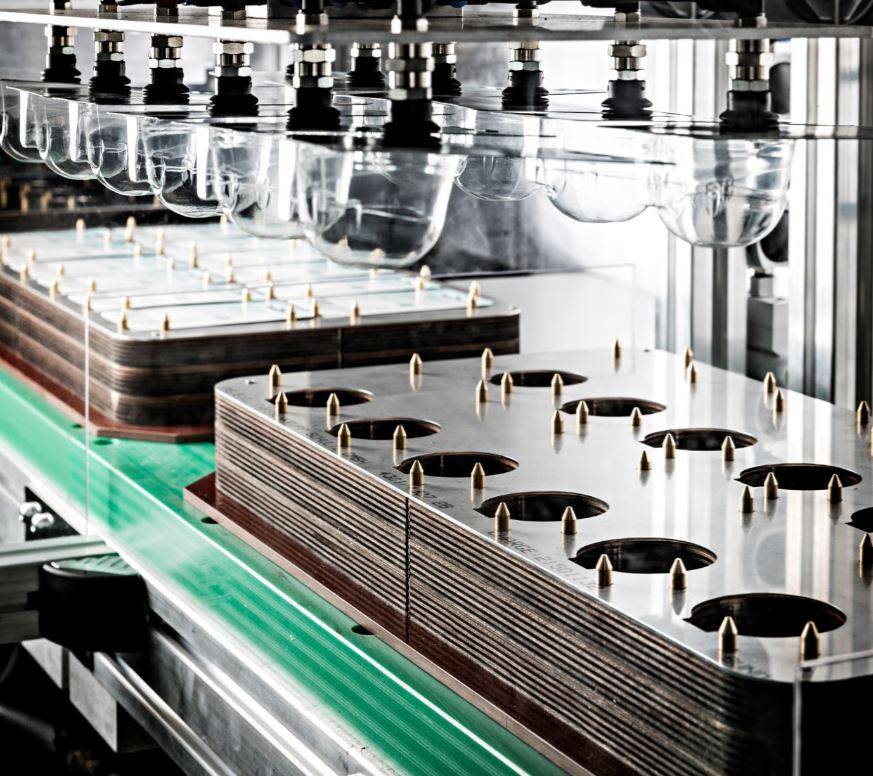

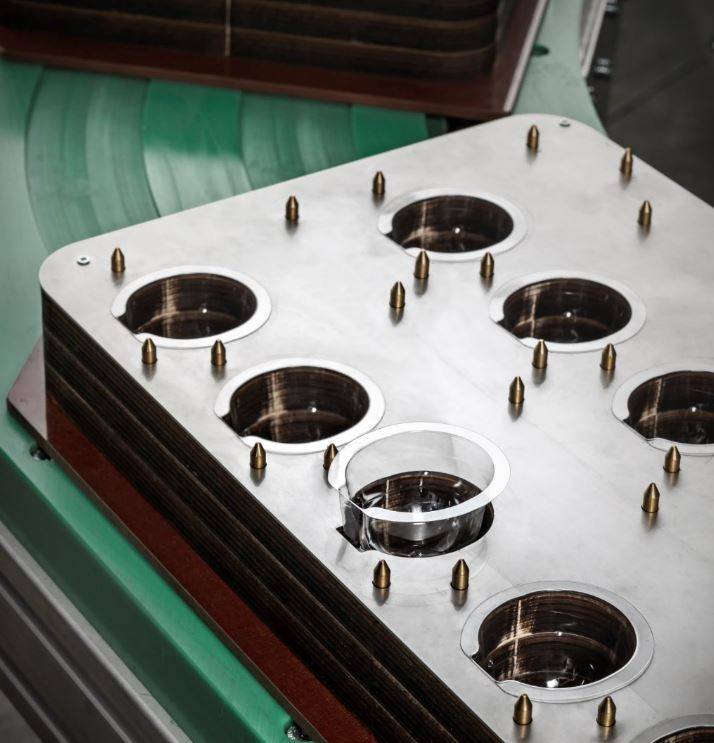

 Quick Change Tooling HC63
Quick Change Tooling Set

 General Table of Specifications



Technical Specifications

HC63



Footprint

open modular carousel



Number of product trays

12



Seal area

600 x 320

mm

Blister height (max.)

up to 75

mm

Pallet transport system

servo-driven



Pre-formed blister feeder station

Additional extra



Back card feeder station

included



Sealing station

heat sealing



Sealing press temperature range

80 to 200

degrees Celsius

Sealing pressure (max.)

81

kN

Heating power

4,4

kW

Adjustable sealing pressure

included



Finished pack unloader

included



Cycle time (dry cycle)

up to 14

cycles/minute

Power supply

400V T N, 50 Hz





Dimensions and weight


Height

1.821

mm

Frame width

2.302

mm

Length

3.762

mm

Estimated weight

1.800

kg
