BPC25N / BPC35N

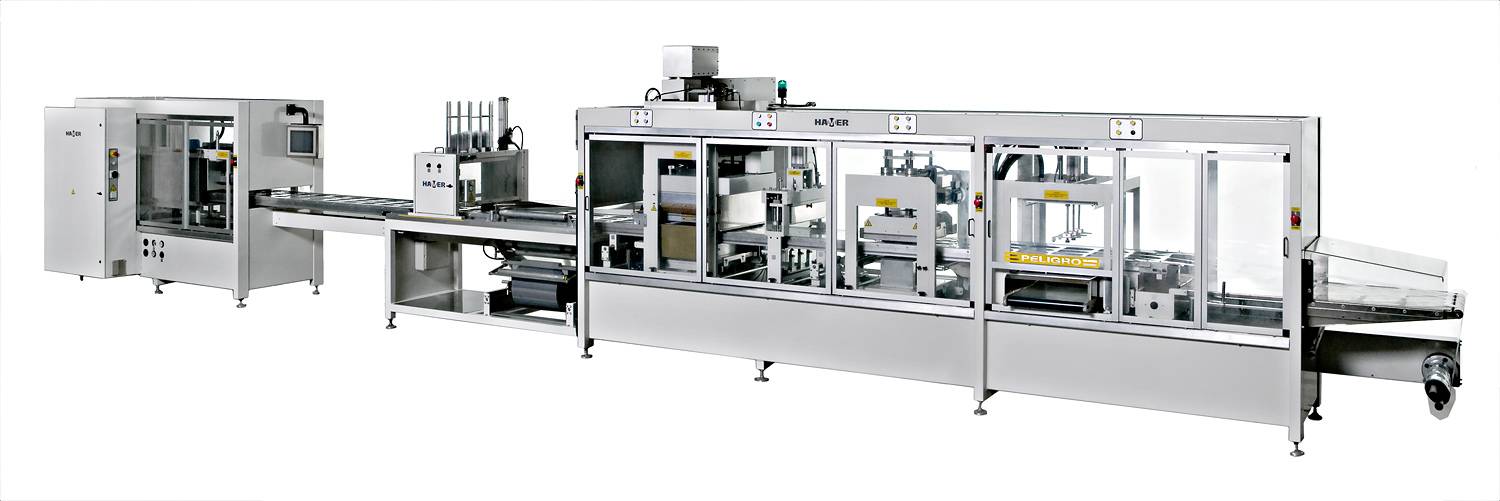

The BPC 25N and BPC 35N are automatic horizontal lines suitable for the manufacture of any kind of blister packages. They are available in two sizes: 350x250 mm (BPC25N) and 500x350 mm (BPC35N). Suitable for medium and large runs of any kind of blisters.

BPC 25N / BCP 35N

Operation

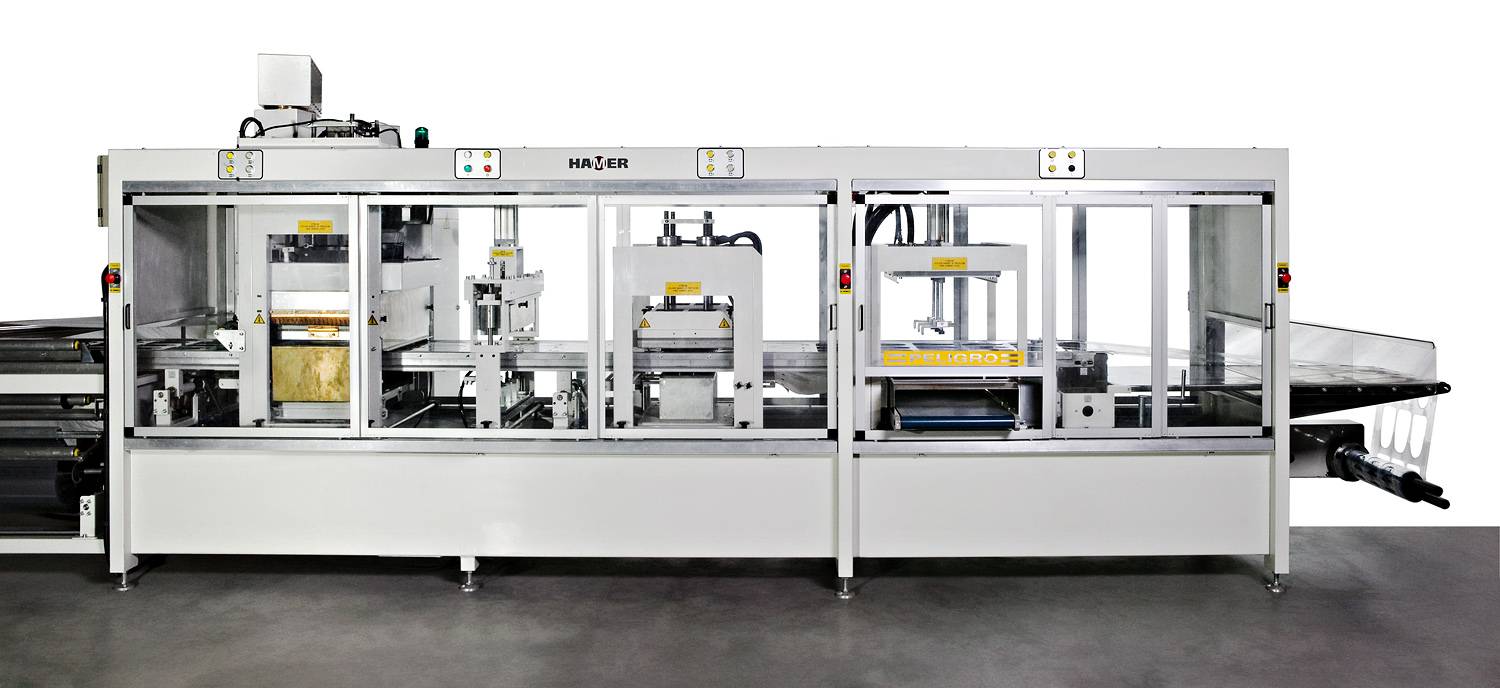

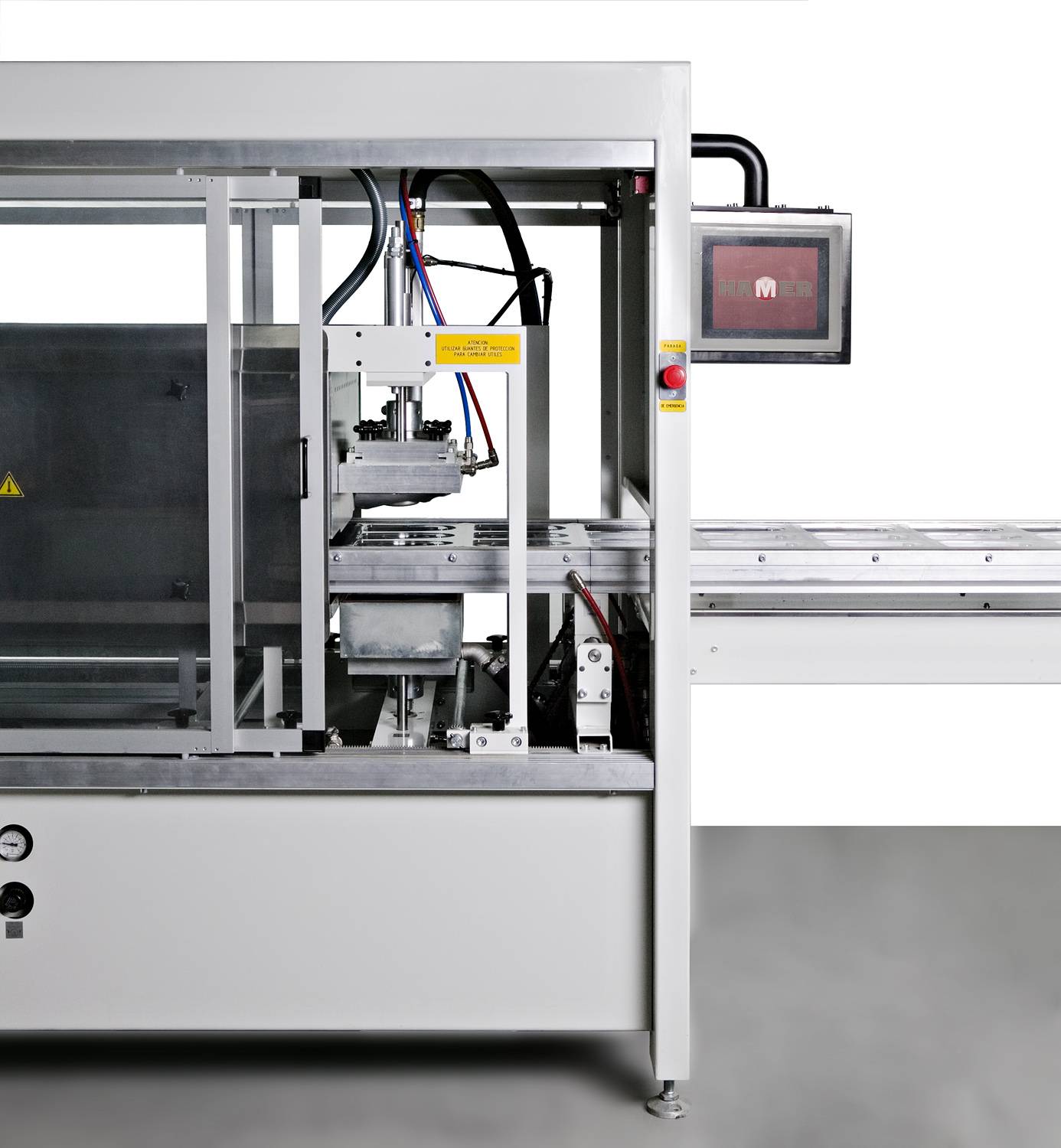

All machines in the BPC series integrate all operations needed to manufacture a blister package, from forming the blister, loading of the product and sealing to trimming operations.

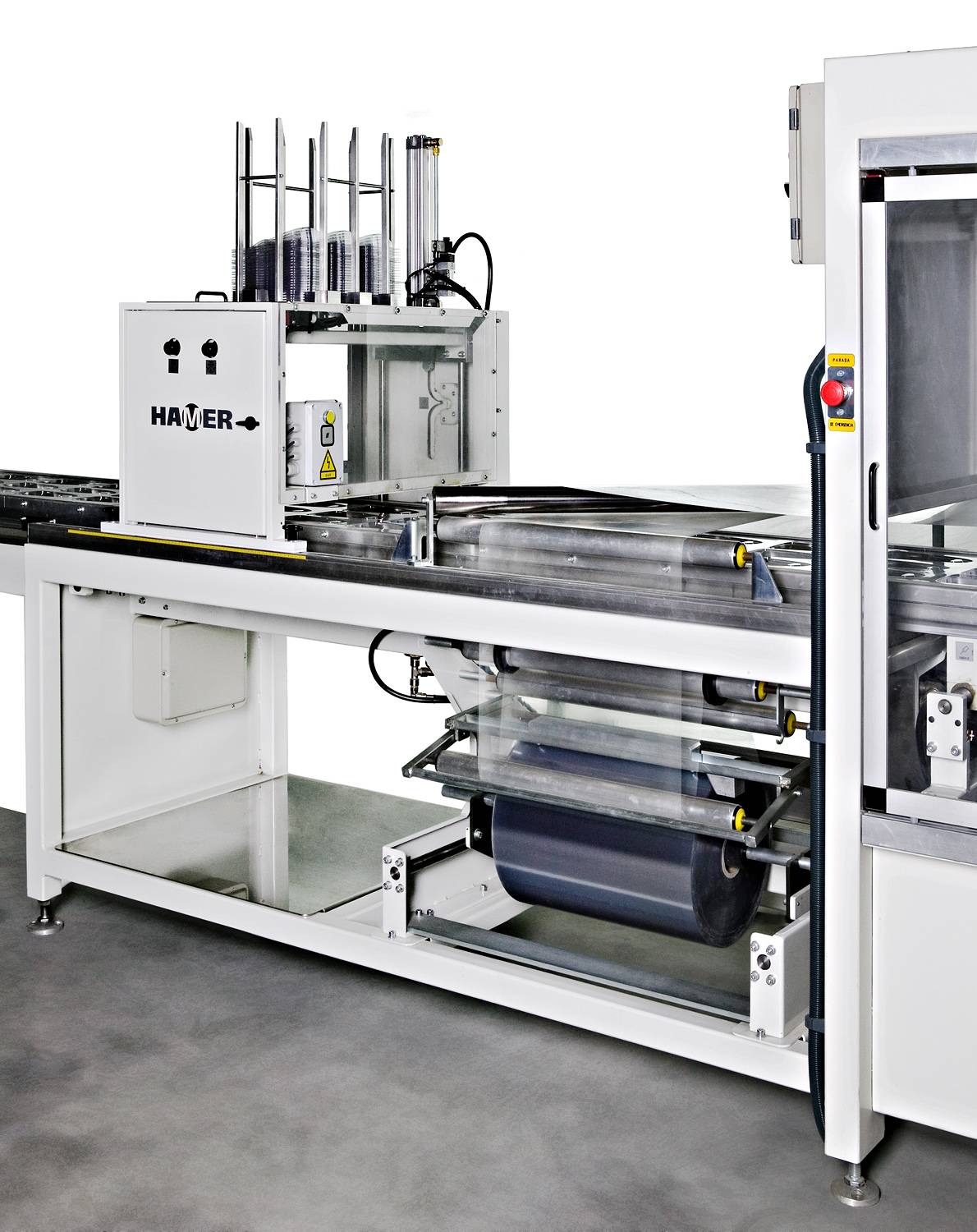

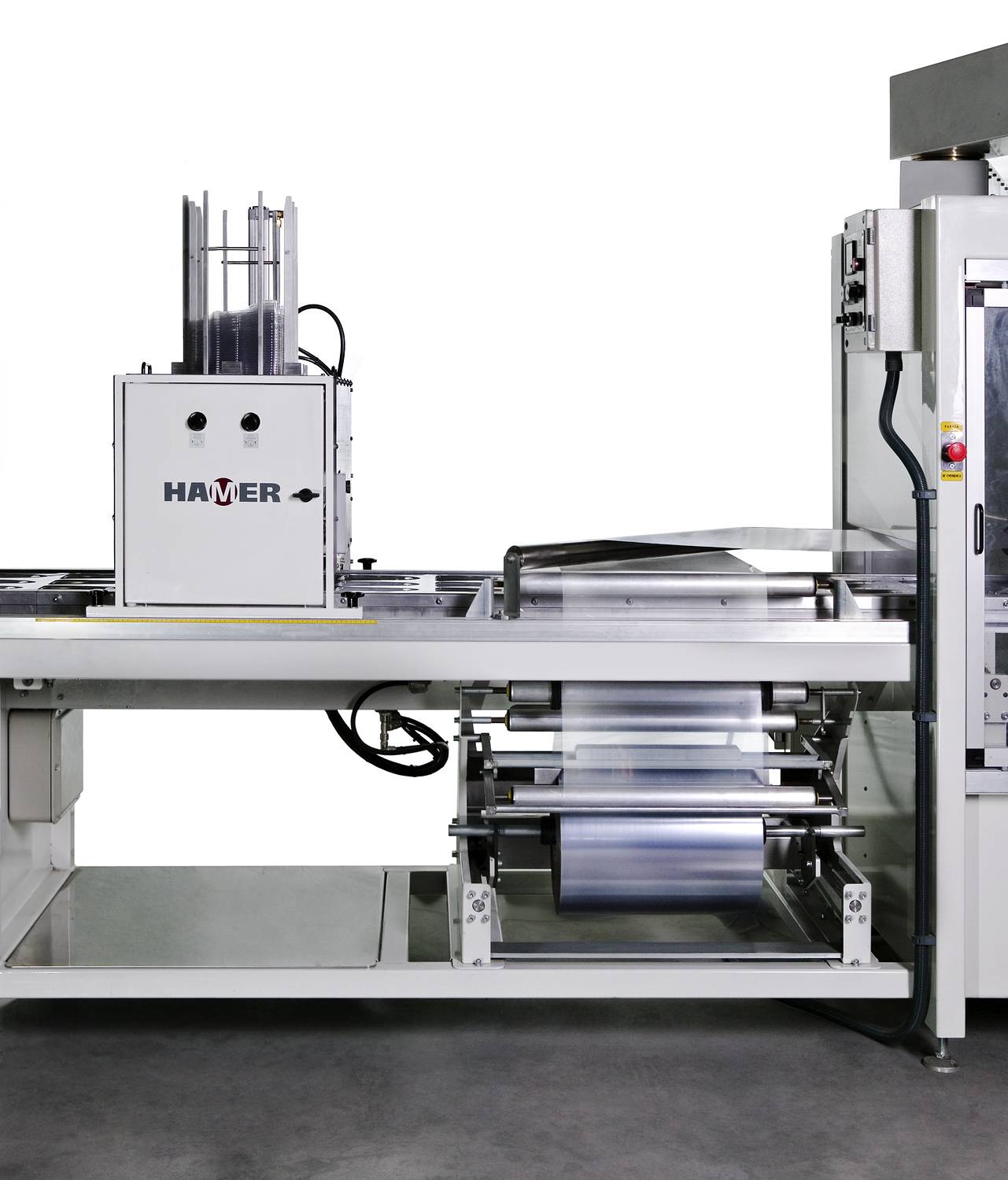

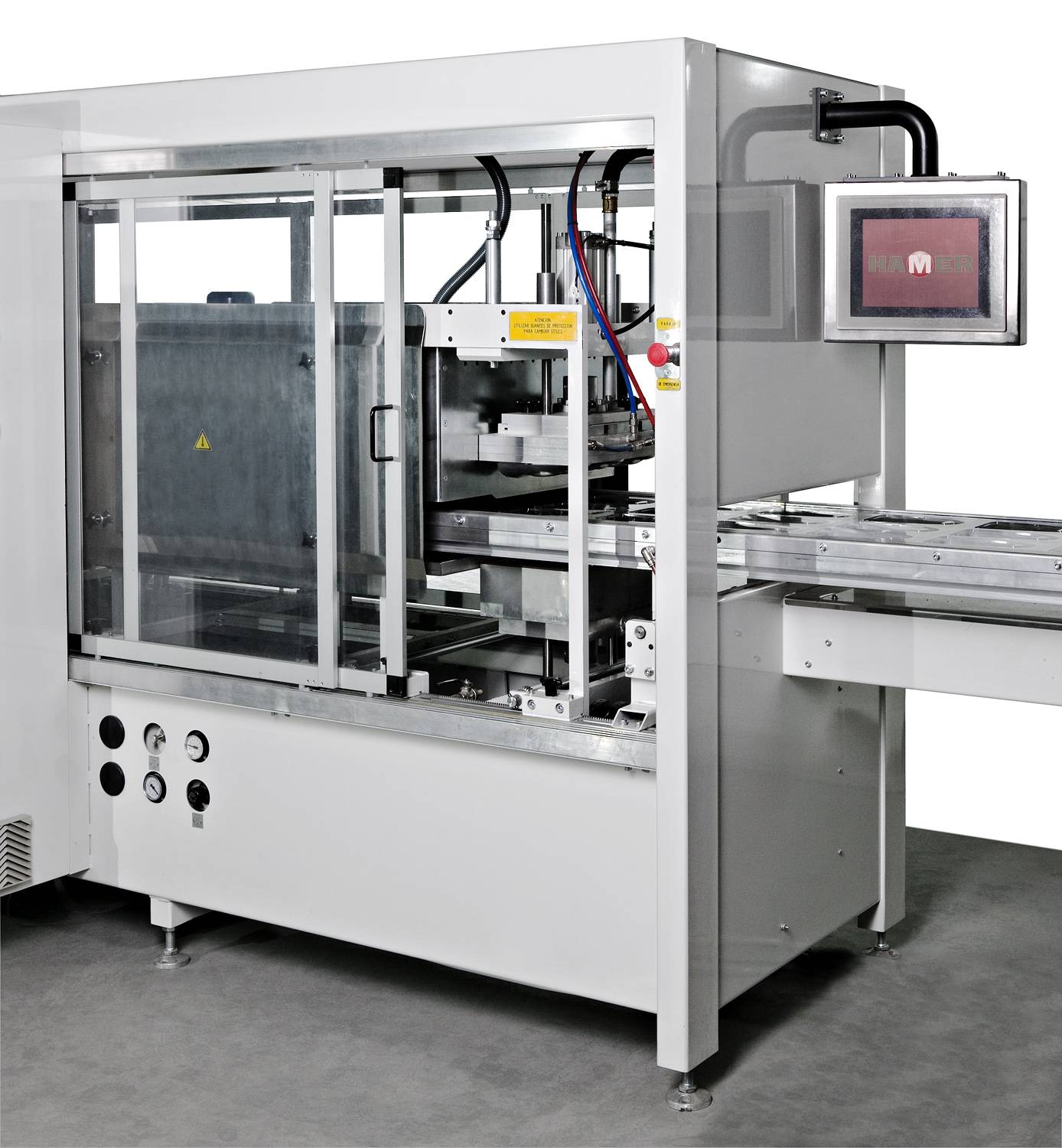

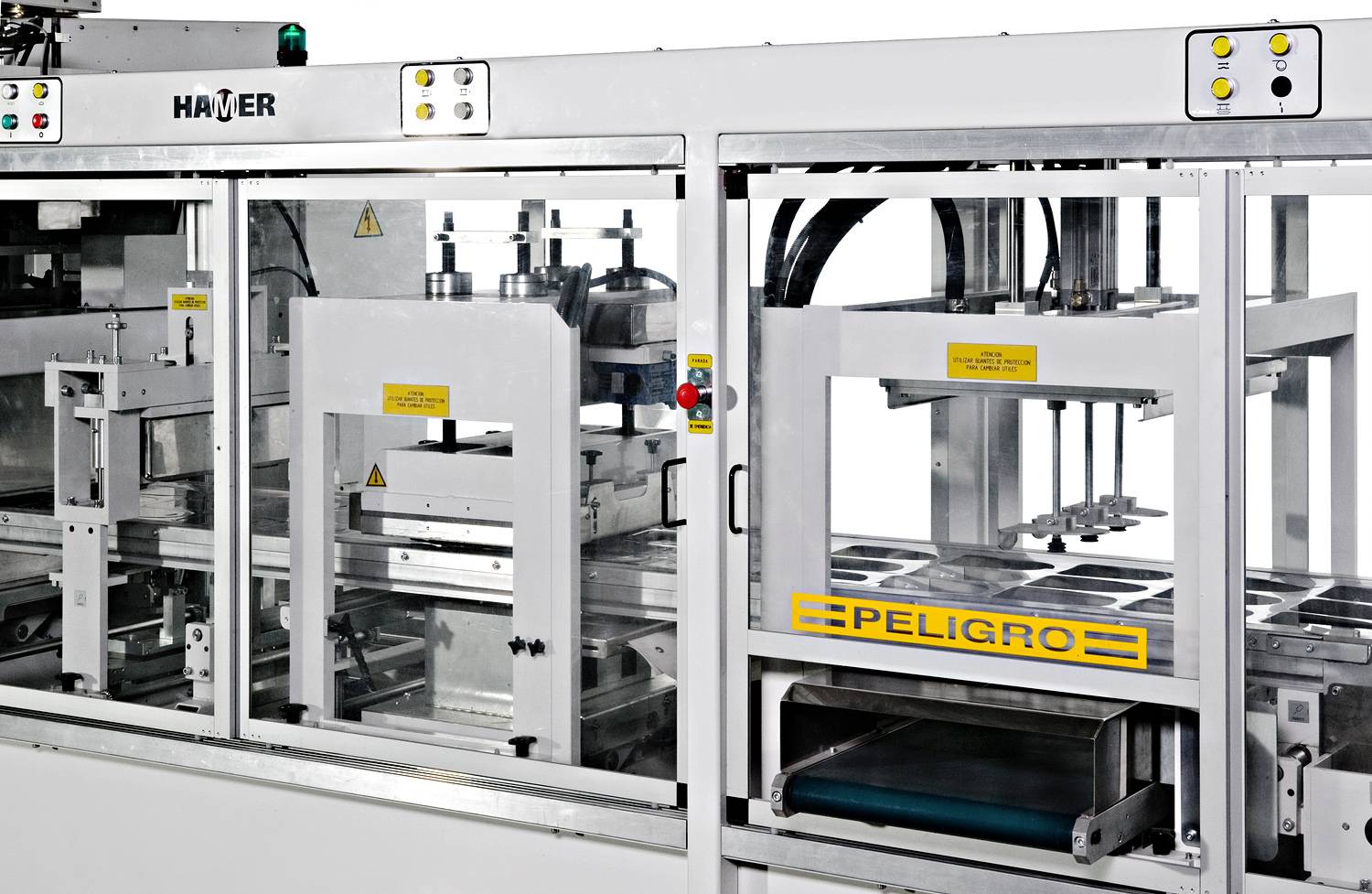

Plastic film is fed from a roll into a set of indexing chains that pierce the film and transport it into the machine for a continuous process of forming, sealing and cutting.

Optional Extras

The BPC-N series of Hamer blister lines are highly customizable. A large list of optional extras are available for both machines adapting them to our customer’s needs.

The most common optional extras are:

  • Pressure forming in addition to vacuum forming.
  • Customizable length of loading area.
  • High frequency welding.
  • Dedicated printing and coding system (flexographic printers, inkjet based coders etc)
  • Dedicated punching station for the euro-holder.
  • Possibility to manufacture a blister where both front and rear parts are formed.

Technical specifications



BPC25N

BPC35N

Forming film roll diameter (max.)

500 mm

500 mm (800 mm optional)

Forming film thickness

0.5 mm

0.5 mm (1 mm optional)

Forming film width (max.)

400 mm

Forming film width (min).





Forming area (max.)

350x250 mm

500x350 mm

Forming area (min.)

230x100 mm

300x100 mm

Forming depth below film line (max.)

80 mm

Vacuum pump flow

21 m3/h

40 m3/h

Heating power

9,2 kW

17,2 kW

Sealing film roll diameter (max.)

400 mm

Sealing film thickness (max.)





Loading area length

2000 mm

Loading area height

950 mm

Sealing force

5000  Kg

7.500 Kg

Die-cutting force

7.500 Kg

12.000 Kg

Cycle speed (dry conditions)

30 cycles/minute

Total installed power

21,72 kW

32,22 kW

Total air consumption (dry cycle)

102 m3/h

150 m3/h

Power supply

400 V T N, 50 Hz



Dimensions



BPC25N

BPC35N

Height

1.800 mm

1.800 mm

Width

1.120 mm

1.320 mm

Length

9.860 mm

10.660 mm

Estimated Weight

2.500 Kg

3.500 Kg
