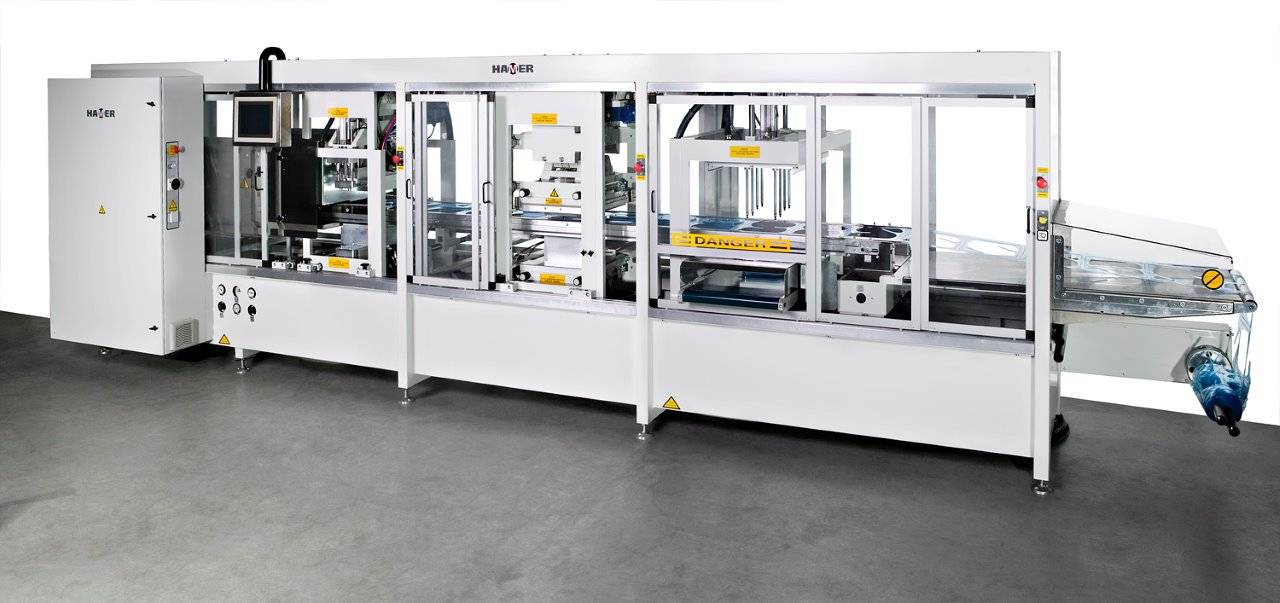

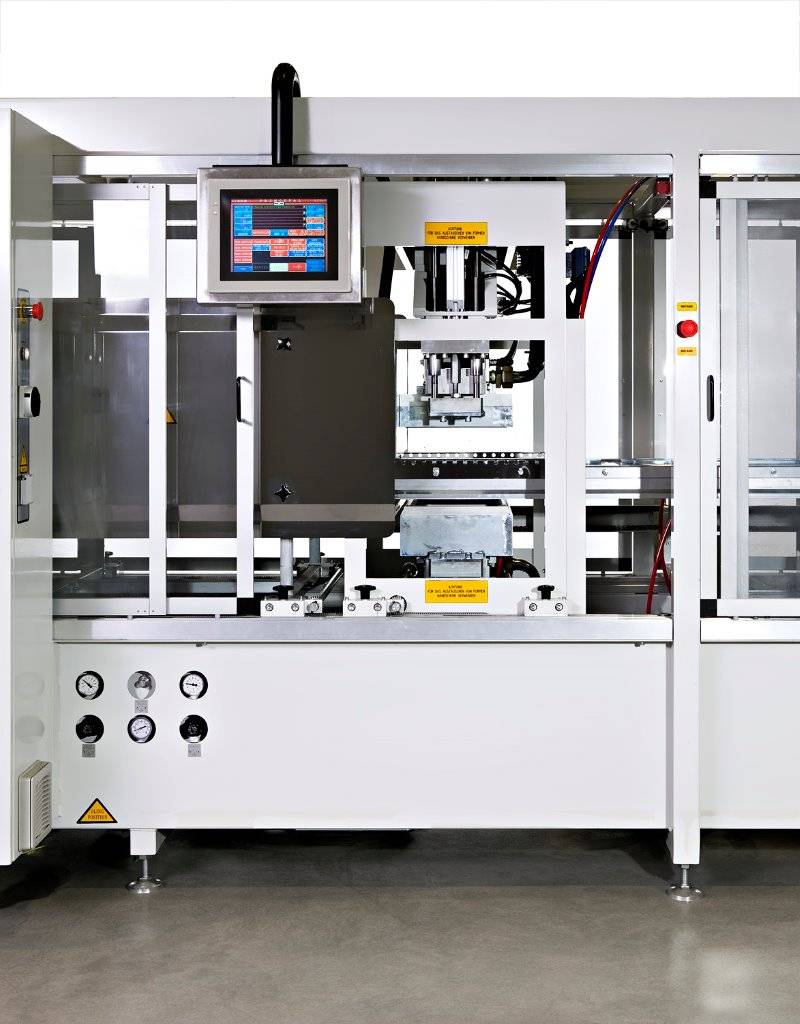

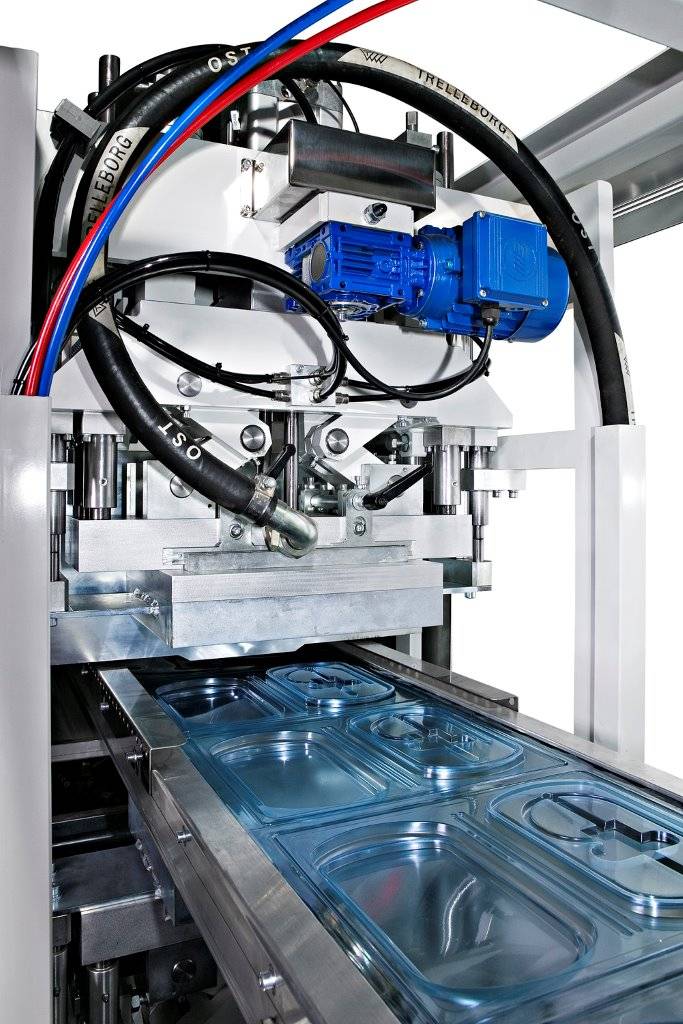

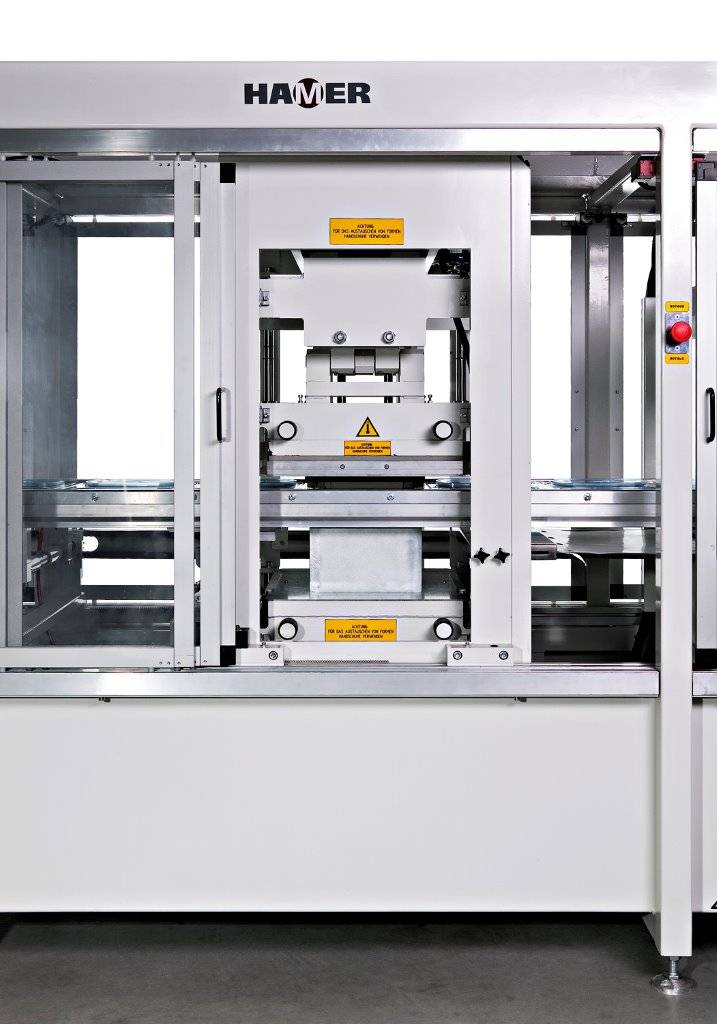

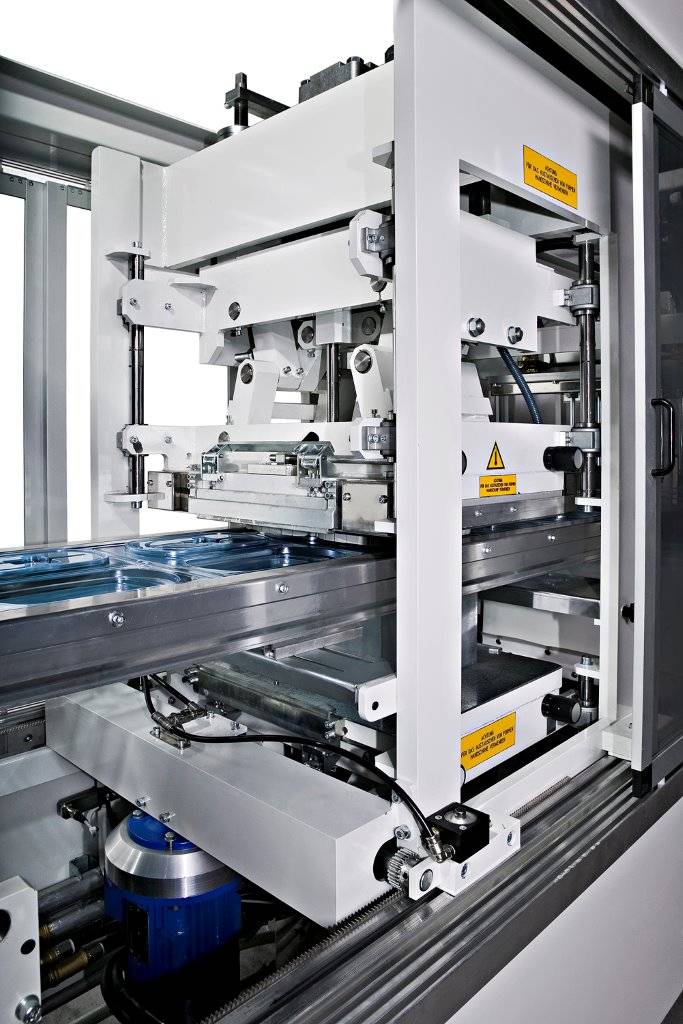

The TVP35 is a roll-fed automatic thermoforming machine with separate forming and trimming stations. The forming is made with a combination of vacuum and air pressure (up to 6 bars). Maximum forming area is 500x350 mm. This machine is suitable for the production of large outputs of small parts, with most of the thermoformable material (PVC, PET, PS, OPS,RPET)
Main specifications
Machine frame is built according to a modular design but allows customisation to suit the customer's needs. The most common optional extras of this machine are as follows:
- Can use foil up to 1 mm thickness, by means of foil edge pre-heaters.
- Hole punch press between forming and cutting station.
- Motorized positioning of steel-rule trimming press according to index length.
- Motorized adjustment of gap between chain rails according to foil width.
Technical specifications
|
|
TVP35 |
|
|

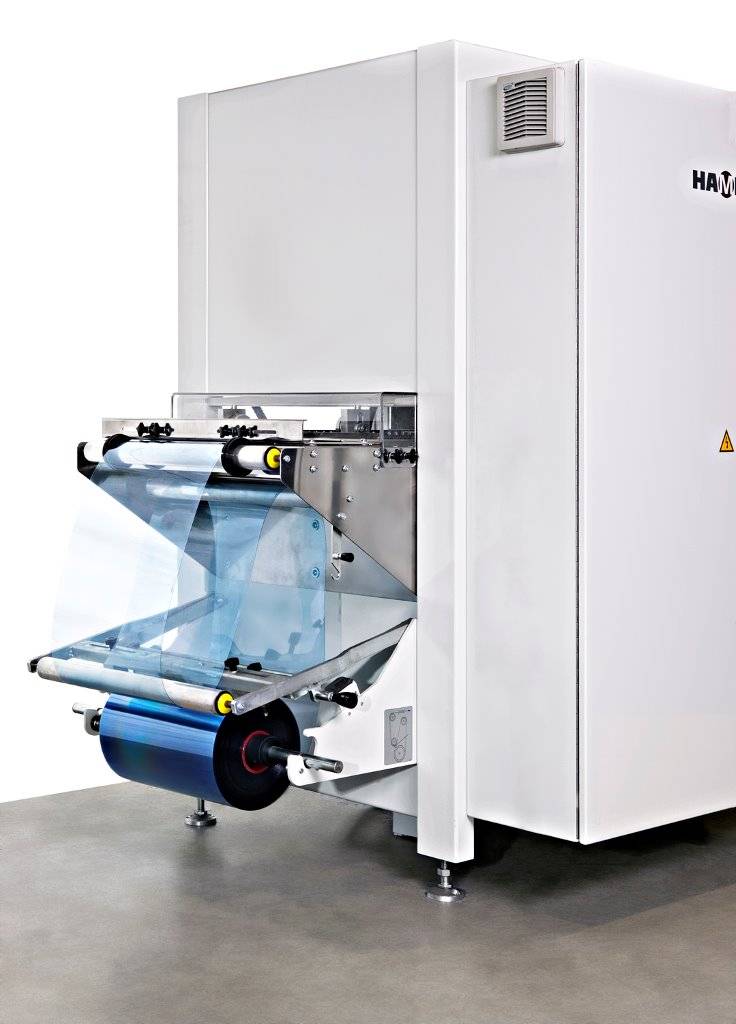

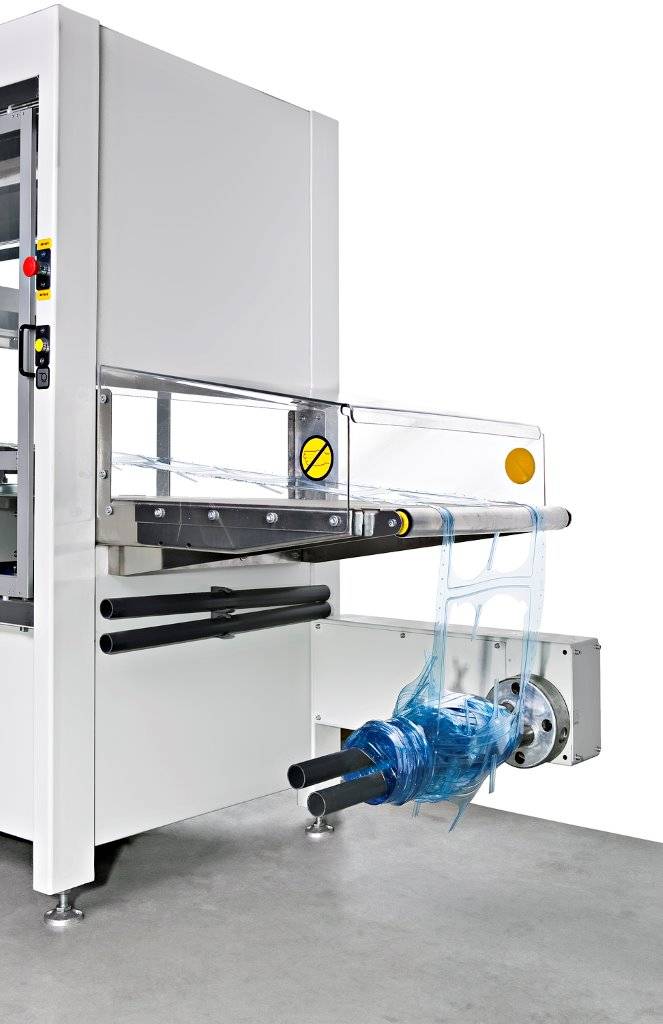

Forming film roll diameter (max.) |
500 (800 mm optional) |
Mm |
|
Forming film thickness (max.) |
up to 1 mm |
|
|
Forming film width (max.) |
570 |
Mm |
|
Forming film width (min.) |
330 |
Mm |
|
Forming area (max.) |
500x350 |
Mm |
|
Forming area (min.) |
300x200 |
Mm |
|
Forming depth below film line (max.) |
80 |
Mm |
|
Forming height above film line (max.) |
70 |
Mm |
|
Vacuum pump flow |
40 |
m3/h |
|
Forming pressure |
6 |
bars |
|
Heating power |
17,2 |
kW |
|
Forming tables driven by |
Pneumatic/toggles |
|
|
Trimming press tables driven by |
Pneumatic/toggles |
|
|
Trimming power |
20 |
Tn. |
|
Dry cycle output |
30 |
Cycles/min. |
|

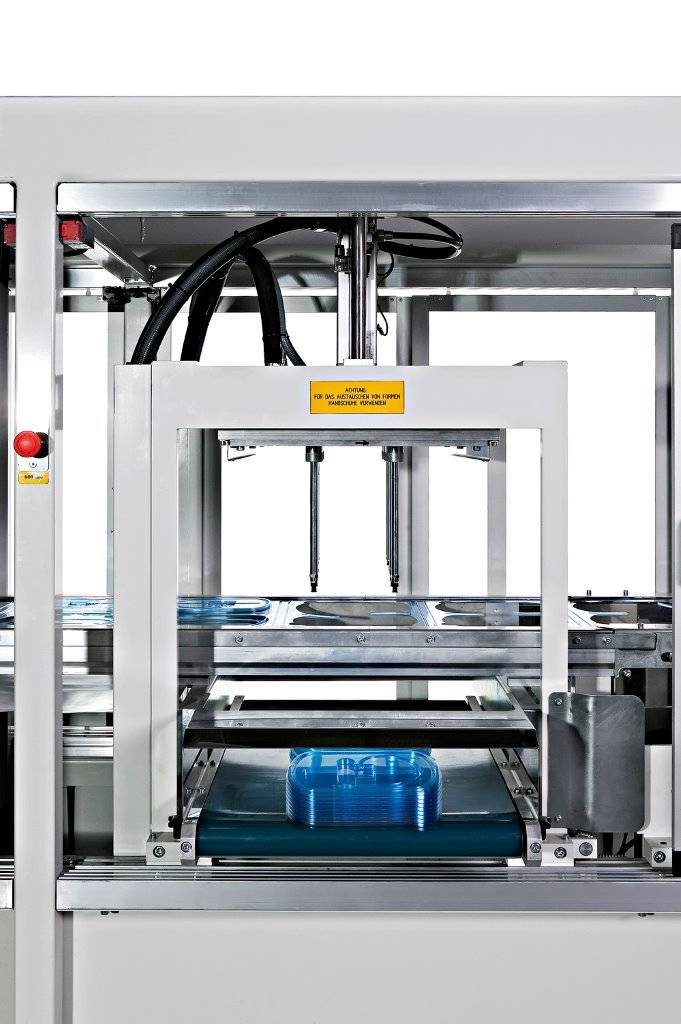

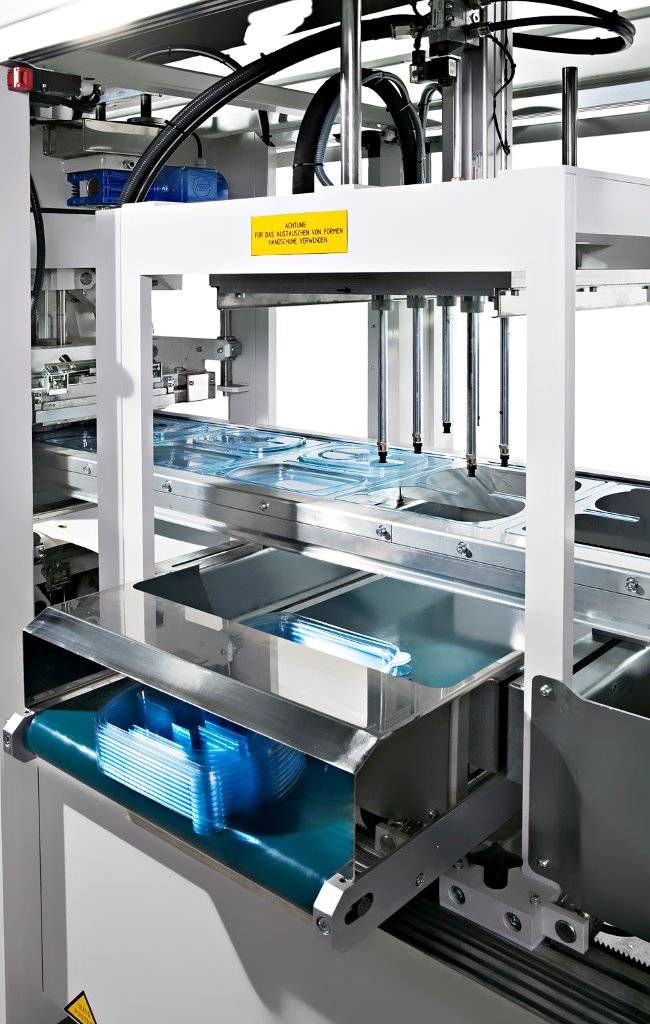

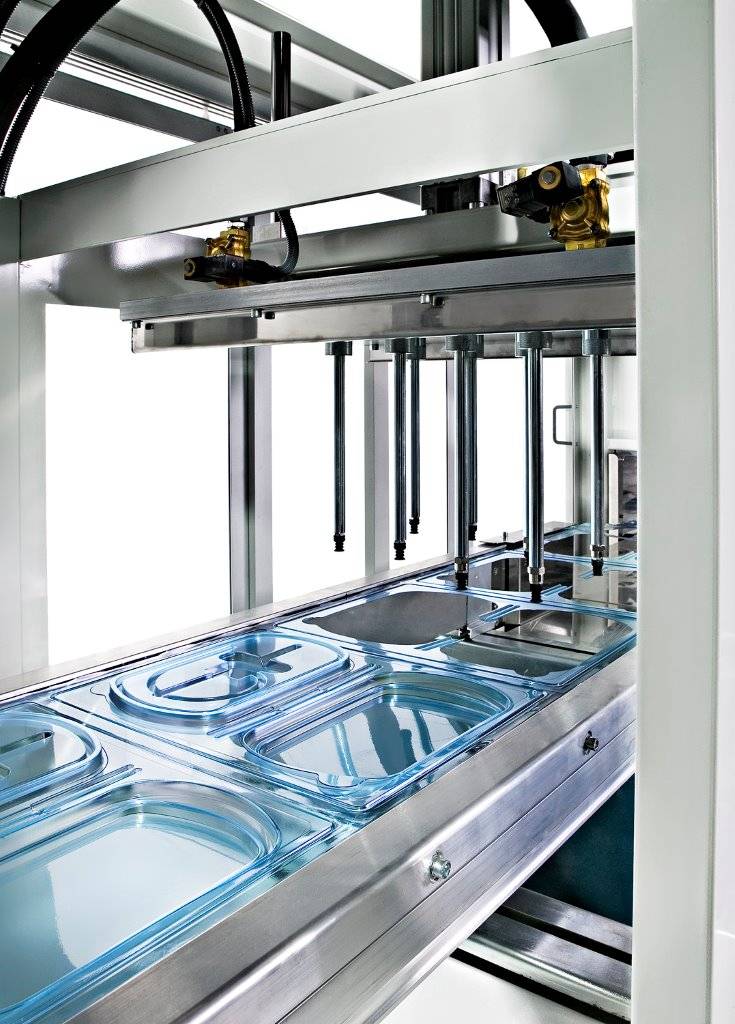

Stacker driven by |
Pneumatic |
|
|
Total installed power |
26,79 |
kW |
|
Air consumption (at dry/cycle) |
175 |
m3/h |
|
Power supply |
400 |
V N T, 50 Hz |
Weight and dimensions.
|
|
TVP35 |
|
|
Height |
1.900 |
Mm |
|
Frame width |
1.320 |
Mm |
|
Length |
6.960 |
Mm |
|
Estimated weight |
4.000 |
Kg. |
