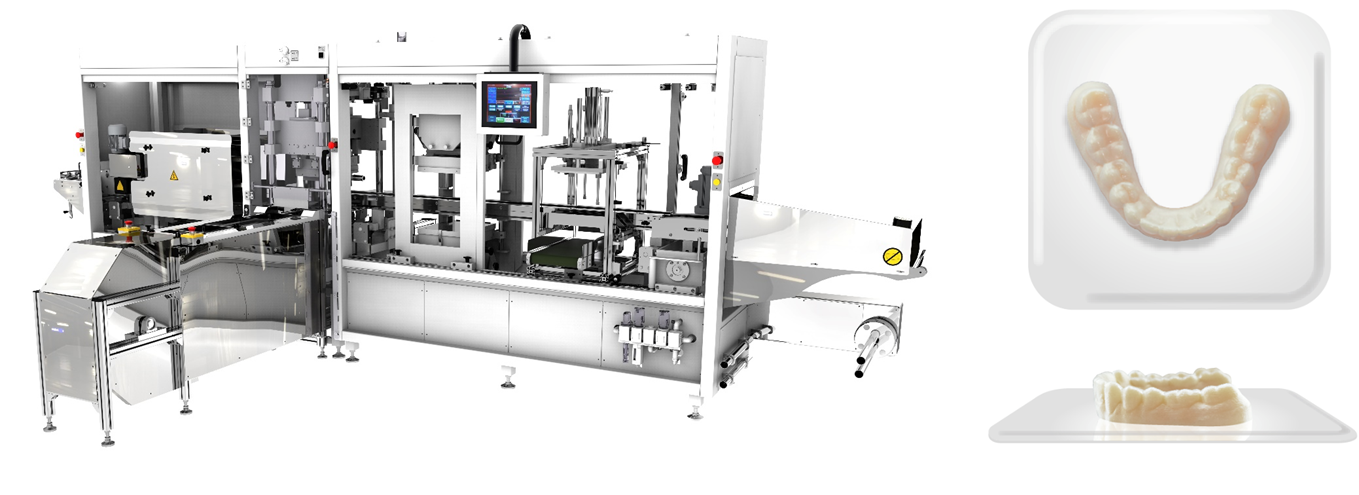

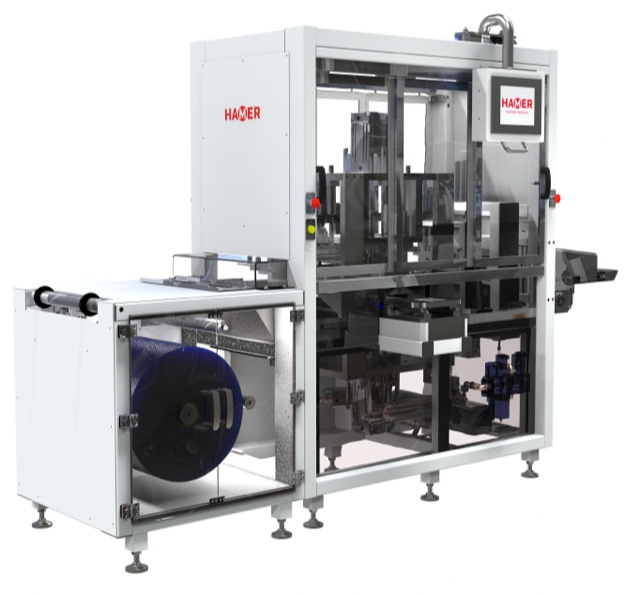

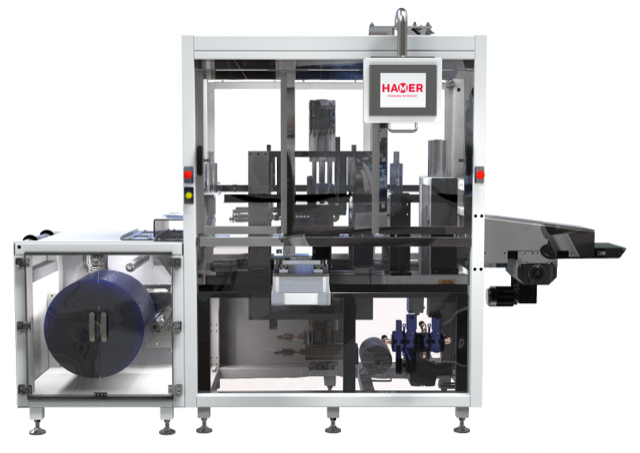

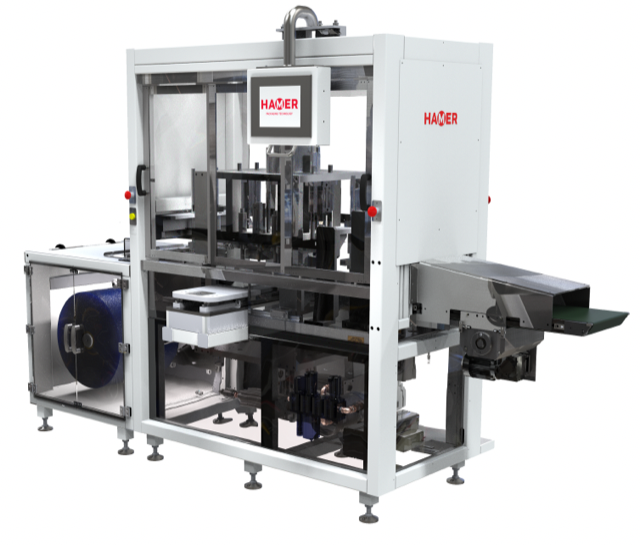

Fully automatic vacuum and pressure thermoforming machine for dental aligners with in-feed for 3D models using roll feed material and a patented film heating system that allows for different types of plastic and film thickness.
Main specifications
- Forming area 220 x 220mm
- PLC and touch screen control
- Can be integrated with vision cameras for code reading and laser markers
- Production rate 300-1300 units per hour depending on machine model, materials and operator
Operation
The operator places the 3D models on a carousel. The film is heated in the heating station until it reaches the correct temperature (depending on the type of film) before proceeding to the moulding station, cutting station and finally, the products are placed on a conveyor belt.
Technical specifications
|
|
TVP25 |
TVP12 |
|
Forming film roll diameter (max.) |
500mm |
500mm |
|
Forming film thickness (max.) |
0.8mm |
0.8mm |
|
Forming film width (max.) |
254mm |
110mm |
|
Forming film width (min.) |
127mm |
- |
|
Forming area (max.) |
220x220mm |
92x87mm |
|
Former height above film line (max.) |
30mm |
30mm |
|
Vacuum pump flow |
7.3m³/h |
- |
|
Forming pressure |
10 bars |
10 bars |
|
Heating power |
10.4kW |
12kW |
|
Forming tables driven by |
Pneumatic/toggles |
Pneumatic |
|
Trimming press tables driven by |
Pneumatic/toggles |
Pneumatic |
|
Trimming power |
26 Tn. |
- |
|
Stacker driven by |
Pneumatic |
Pneumatic |
|
Total installed power |
20kW |
13kW |
|
Air consumption (at dry/cycle) |
50m³/h |
110 litres/cycle |
|
Power supply |
EU: 400 V III + N +G 50Hz USA: 480V III + N + G 60Hz |
400 VIII + N +G 50Hz |
Weight and dimensions.
|
|
TVP35 |
TVP12 |
|
Height |
2.150mm |
1.900mm |
|
Frame Width (with infeed carousel) |
3.200mm |
1.300mm |
|
Length |
6.200mm |
3.000-4.100mm |
|
Estimated weight |
3800kg |
1.300kg |
The machine specifications are for information only and may vary from final specifications depending on your requirements. Please note optional extras have been listed above and are in addition to the standard machine.
Hamer can supply a complete turn key solution and project manage from start to finish.
Please contact us for further information on 01473 824222 or by email [email protected].
