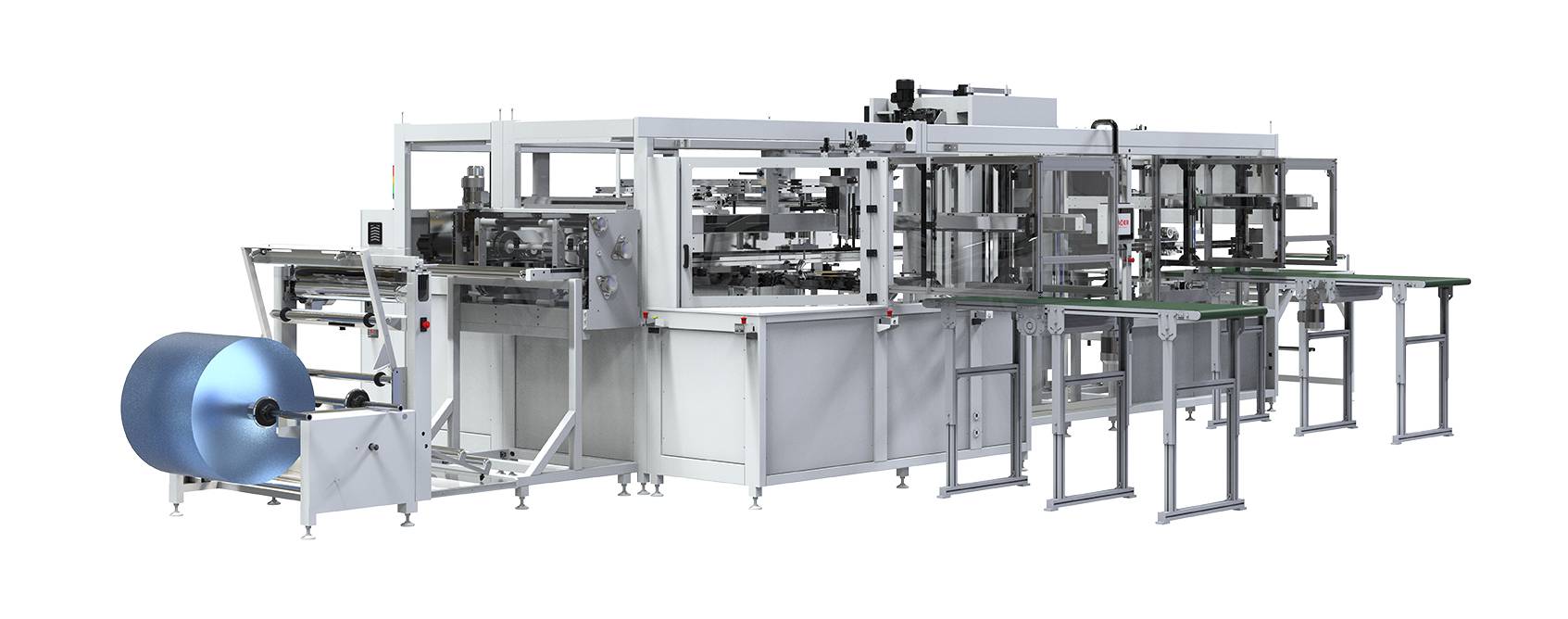

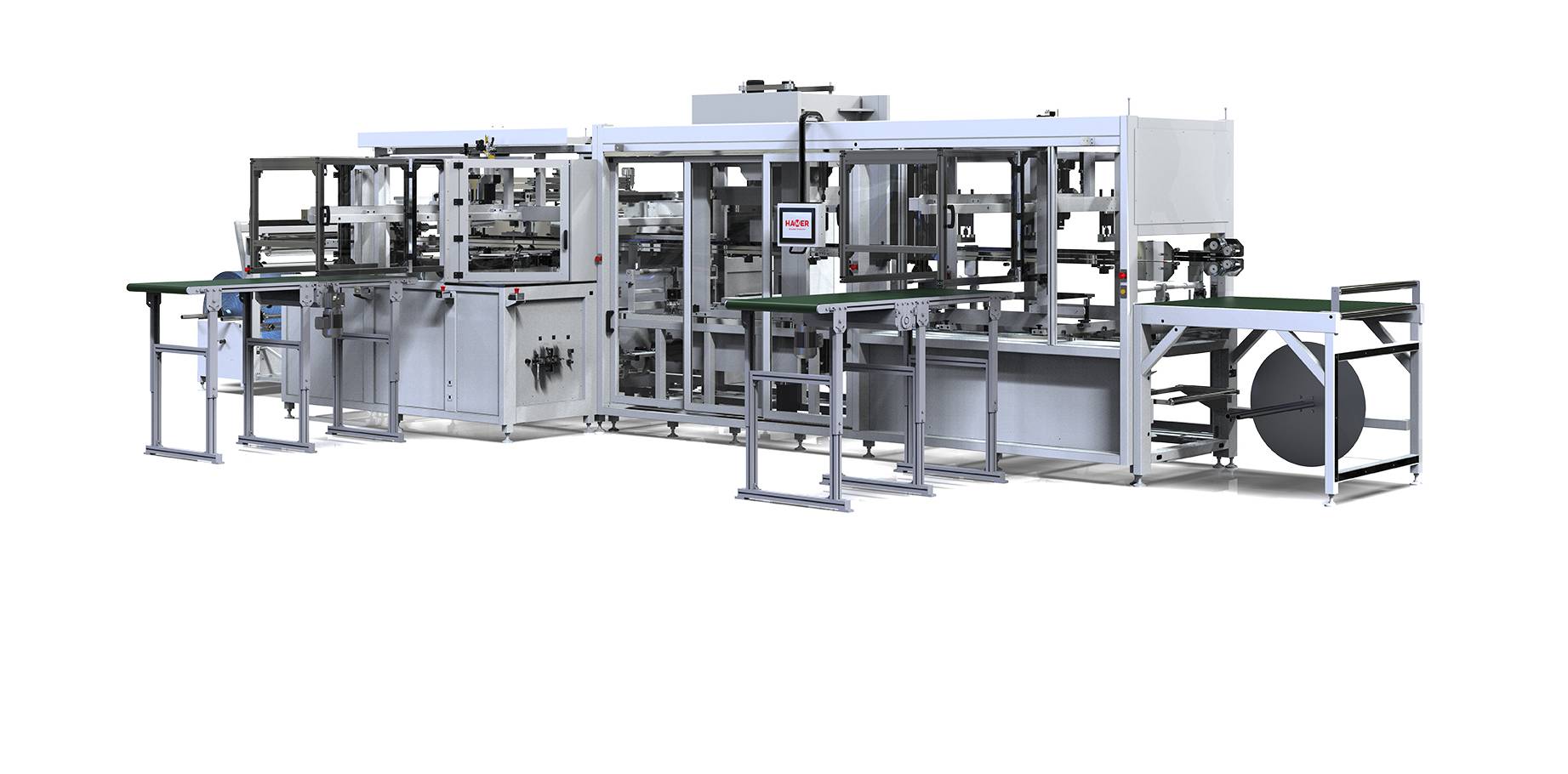

The LH76 is a fully automatic roll fed laminating machine for preformed fiber trays and other products to produce a waterproof and heat sealable tray suitable for MAP.
The LH76 integrates all operations from picking the preformed fibre trays from a conveyor, laminating, trimming and stacking.
|
Dimensions (H x W x D) |
2650mm x 5910mm x 11590mm |
|
Estimated weight |
7500kg |
|
Forming film roll diameter max |
800mm |
|
Roll core diameter |
76mm |
|
Laminating film thickness min/max |
30/200 microns |
|
Laminating film width min/max |
560mm/820mm |
|
Forming depth max |
100mm |
|
Vacuum pump flow |
190 m3/h |
|
Heating power |
28 kW |
|
Forming tables driven by |
Servomotors |
|
Trimming tables driven by |
Servomotors |
|
Trimming power |
60 Tn |
|
Stacking driven by |
Serevomotors |
|
Dry cycle output |
10 cycles/minute |
|
Total installed power |
60 kW |
|
Air consumption (at dry/cycle) |
25 m3/h |
|
Power supply |
400V III+G+N 50Hz |
|
Colour |
RAL 9002 |
